Needle Roller Bearing

NA4905 Needle Roller Bearings With Machined Rings

Leave a comment

Part Number NA4905

NA4900

Technical Specs

Spec NA4905
Item Needle Roller Bearings
Bore Dia. 25 mm
Outside Dia. 42 mm
Width 17 mm
Dynamic Load Capacity (kN) 24.2kN
Static Load Capacity (kN) 34.5kN
Max. RPM(r/min) 13000

NA4905 Needle roller bearings with machined rings are a type of roller bearing. They use cylindrical rollers that run on the inside of a ring. This bearing type is suitable for high speeds and heavy loads.

Other types of roller bearings are also available: NKI35/20, NA6906, NA69/28. If you’re interested in our procucts, please feel free to contact us.

Angular Contact Ball Bearing

7000C Angular Contact Ball Bearing

Leave a comment

Technical Specs

Spec 7000C
Item Angular Contact Ball Bearing
Type 15 deg contact angle
Bore Dia. 10 mm
Outside Dia. 26 mm
Width 8 mm
ABEC Tolerance /
Dynamic Load Capacity (kN) 5.32kN
Static Load Capacity (kN) 2.49kN
Max. RPM 41,000 r/min（Grease）58,000r/min（Oil）
Temp. Range (℃) /
Material /
Shield Material /
Lubrication Grease/oil

There are 7000AC, 7200C, 7200AC, 7200B, etc. with the same inner diameter as the 7000C angular contact ball bearing. If you need any type of angular contact bearing or angular contact bearing with special requirements, you can contact us for customization. For more needs, please contact our professional account team, we will be happy to help you!

Cylindrical Roller Bearing

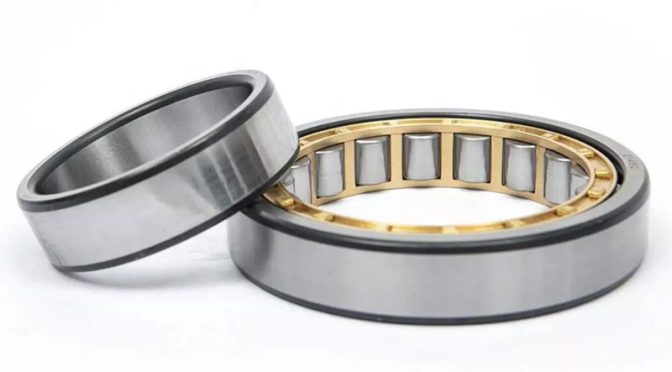

NU305 China Cylindrical Roller Bearings

Leave a comment

Part Number NU305

nu

Technical Specs

Spec NU305
Item Cylindrical Roller Bearing
Type NU series
Bore Dia. 25 mm
Outside Dia. 62 mm
Width 17 mm
Fw(mm) 35
Ew(mm) 53
Dynamic Load Capacity (kN) 31.5kN
Static Load Capacity (kN) 27.7kN
Max. RPM(r/min) 13000
Lubrication Grease/oil

NU305 cylindrical roller bearings are widely used in metallurgy, mining, printing, textiles, chemical industry, food machinery and other fields. Because of the high load capacity and good wear resistance, our China cylindrical roller bearings are very popular among customers.

Other types of roller bearings are also available: NU1006, NU1007, NU207. If you’re interested in our procucts, please feel free to contact us.

Cylindrical Roller Bearing

NU2205 Budget Cylindrical Roller Bearing

Leave a comment

Part Number NU2205

nu

Technical Specs

Spec NU2205
Item Cylindrical Roller Bearing
Type NU series
Bore Dia. 25 mm
Outside Dia. 52 mm
Width 32 mm
Fw(mm) 32
Ew(mm) 45
Dynamic Load Capacity (kN) 25.1kN
Static Load Capacity (kN) 24.7kN
Max. RPM(r/min) 14000
Lubrication Grease/oil

NU2205 is an open flange design, which together with the roller end design and surface finish, promotes the formation of a lubricant film that reduces friction and increases axial load carrying capacity. For more cylindrical roller bearing needs, please contact our professional account team, we will be happy to help you!

Other types of ball bearings are also available: NUP1008, NJ408, NJ2207, NU2206. If you’re interested in our procucts, please feel free to contact us.

Tapered Roller Bearing

30202 Tapered Roller Bearings

Leave a comment

Technical Specs

Spec 30202
Item Tapered Roller Bearings
Bore Dia. 15 mm
Outside Dia. 35 mm
Width 11 mm
Dynamic Load Capacity (kN) 14.8kN
Static Load Capacity (kN) 13.2kN
Max. RPM 15000r/min
Material Chrome stee
Lubrication Grease

In addition to 30202 tapered roller bearings, there are 30302 with the same inner diameter. If you need any type of tapered roller bearings, you can contact our professional customer service team, and they will provide you with the bearing model and technical information you need. Glad to serve you!

Thrust Ball Bearing

51108 Thrust ball bearing

Leave a comment

Part Number 51108

1

Technical Specifications

Dynamic Loa Capacity (Lb.) 26.9kN
Static Load Capacity (Lb.) 63kN
Max. RPM 3500 r/min（Grease）
Temp. Range (℃) /
Material chrome steel
Shield Material Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease/oil
Spec 51108
Item Thrust ball bearing
Type /
Bore Dia. 40 mm
Outer Diameter 60 mm
Thickness 13 mm
ABEC Tolerance /
  • The 51108 thrust ball bearing is a one-way thrust ball bearing, which can only bear the axial load in one direction, and can limit the movement of the shaft and the housing in one direction.If you have any questions about bearings, you can contact us, we are glad to help you!
Deep Groove Ball Bearing

696 ZZ Metal Shield Ball Bearings

Leave a comment

Part Number 696 ZZ

Deep groove ball bearing drawing
Spec 696 ZZ
Item Miniature Ball Bearings
Type Shielded
Bore Dia (d). 6 mm
Outside Dia (D). 15 mm
Width (B) 5 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 1.35kN
Static Load Capacity (kN) 0.53kN
Max. RPM 44,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material (SPCC) Mild steel ( SPCC)
Lubrication Grease

696 ZZ deep groove ball bearings are made of bearing steel for durability and resistance to rust, corrosion and deformation, and guards on both sides prevent lubricant ingress and contamination. They can withstand radial and axial loads.

This type of bearing is suitable for all kinds of industrial equipment, agricultural machinery, conveying equipment, robots, dental equipment, elevator micromotors, small rotating motors, office equipment, etc.

Yuanhe deep groove ball bearings have low friction, high maximum speed, cost-effective and almost no maintenance. If you have any questions or concerns about the product, please contact us!

Other types of ball bearings are also available: 6903 ZZ, 6903 2RS, 6901 ZZ, 6900 ZZ, 6809 ZZ, 6809 2RS. If you’re interested in our procucts, please feel free to contact us.

Deep Groove Ball Bearing

696 2RS Radial Ball Bearing 6X15X5

Leave a comment

Part Number 696 2RS

Deep groove ball bearing drawing
Spec 696 2RS
Item Miniature Ball Bearings
Type Shielded
Bore Dia (d). 6 mm
Outside Dia (D). 15 mm
Width (B) 5 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 1.35kN
Static Load Capacity (kN) 0.53kN
Max. RPM 44,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material (NBR+SPCC) Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

696 2RS sealed miniature ball bearing has a deep groove geometry suitable for high speeds and supports both radial and axial loads. Its chrome steel construction makes it durable and resistant to deformation under heavy loads. Rubber seals on both sides of the bearing keep lubricants out and keep out contaminants, and it’s pre-lubricated by the manufacturer, so no additional lubrication is required.

These ball bearings are suitable for applications involving combined radial and axial loads and requiring high running accuracy at high speeds. Such applications include clutches, drives, gearboxes, compressors, pumps, turbines, printing and textile machines, and more.

If you have any questions or concerns about our products, please feel free to let us know, or contact me if you have any custom requests!

Other types of ball bearings are also available: 6808 2RS, 6808 ZZ, 6807 ZZ, 6807 2RS, 6806 2RS, 6806 ZZ. If you’re interested in our procucts, please feel free to contact us.
