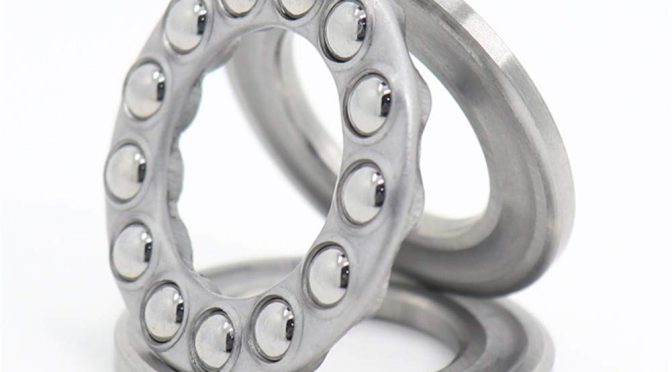

| Spec | 51204 |
| Item | Thrust Ball Bearing |
| Type | / |
| Bore Dia. (d) | 20 mm |
| Outside Dia. (D) | 40 mm |
| Width (B) | 14 mm |
| ABEC Tolerance | / |
| Dynamic Load Capacity (kN) | 22.3kN |
| Static Load Capacity (kN) | 37.5kN |
| Max. RPM | 5900 r/min（Grease） |
| Temp. Range (℃) | / |
| Material | Chrome Steel |
| Shield Material | / |
| Lubrication | Grease/oil |

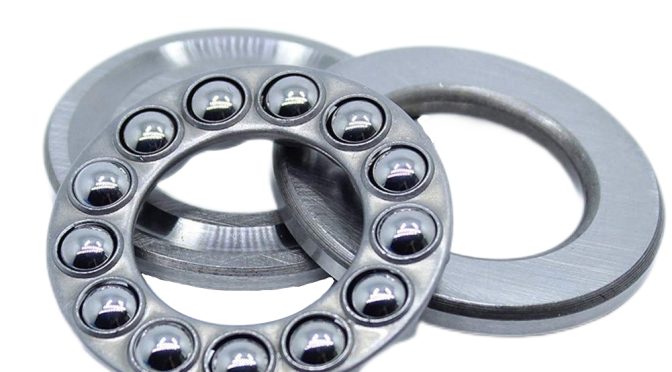

| Spec | 51203 |
| Item | Thrust Ball Bearing |
| Type | / |
| Bore Dia. (d) | 17 mm |
| Outside Dia. (D) | 35 mm |
| Width (B) | 12 mm |
| ABEC Tolerance | / |
| Dynamic Load Capacity (kN) | 17.2kN |
| Static Load Capacity (kN) | 27.3kN |
| Max. RPM | 6800 r/min（Grease） |
| Temp. Range (℃) | / |
| Material | Chrome Steel |
| Shield Material | / |
| Lubrication | Grease/oil |
The 51203 bearings are optimised for high-load, low-speed scenarios that necessitate precision. Our friendly and knowledgeable customer service team will gladly assist you with any questions you may have about bearings. Do not hesitate to contact us today!
Other types of thrust ball bearing are also available:51102, 51103, 51204. If you’re interested in our procucts, please feel free to contact us.

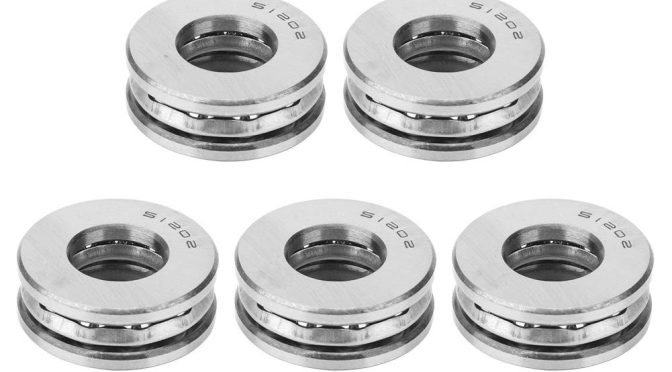

| Spec | 51202 |
| Item | Thrust Ball Bearing |
| Type | / |
| Bore Dia. (d) | 15 mm |
| Outside Dia. (D) | 32 mm |
| Width (B) | 12 mm |
| ABEC Tolerance | / |
| Dynamic Load Capacity (kN) | 16.6kN |
| Static Load Capacity (kN) | 24.8kN |
| Max. RPM | 7100 r/min（Grease） |
| Temp. Range (℃) | / |
| Material | Chrome Steel |
| Shield Material | / |
| Lubrication | Grease/oil |
51202 Ball Thrust Bearings are an excellent choice for applications that require low-friction, high-speed performance. These bearings are made of the highest quality materials and are rigorously tested to ensure durability and long life. Our friendly and knowledgeable customer service team is always happy to help with any questions you may have about bearings. So don’t hesitate to contact us today!
Other types of thrust ball bearing are also available: 51203, 51101, 51104. If you’re interested in our procucts, please feel free to contact us.

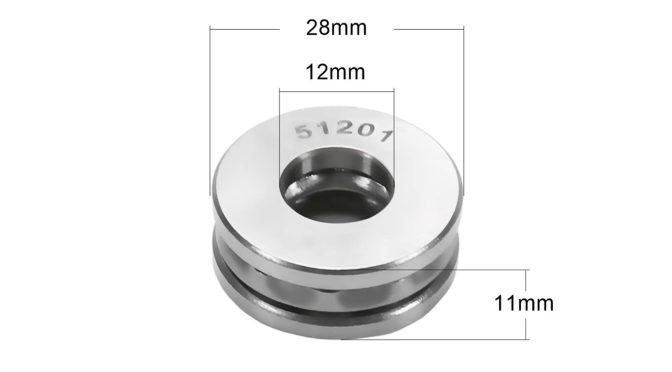

| Spec | 51201 |
| Item | Thrust Ball Bearing |
| Type | / |
| Bore Dia. (d) | 12 mm |
| Outside Dia. (D) | 28 mm |
| Width (B) | 11 mm |
| ABEC Tolerance | / |
| Dynamic Load Capacity (kN) | 13.2kN |
| Static Load Capacity (kN) | 19kN |
| Max. RPM | 8000 r/min（Grease） |
| Temp. Range (℃) | / |
| Material | Chrome Steel |
| Shield Material | / |
| Lubrication | Grease/oil |
51201 Thrust Ball Bearings Single Direction are ideal for applications that need a fixed direction of rotation. The single direction bearings are designed for accommodating axial loads in one direction and are made from high quality materials for lasting performance.
Our customer service team is friendly and knowledgeable, and always happy to help with any questions you may have about bearings. So please don’t hesitate to contact us today!
Other types of thrust ball bearing are also available: 51202, 51103, 51204. If you’re interested in our procucts, please feel free to contact us.

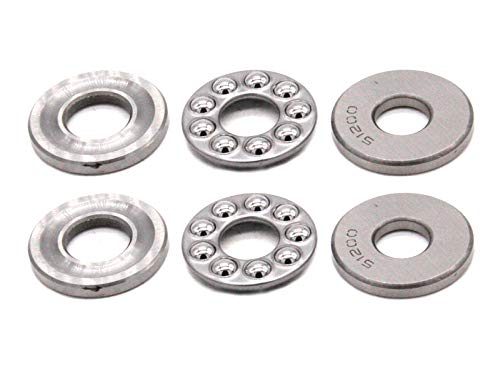

| Spec | 51200 |
| Item | Thrust Ball Bearing |
| Type | / |
| Bore Dia. (d) | 10 mm |
| Outside Dia. (D) | 26 mm |
| Width (B) | 11 mm |
| ABEC Tolerance | / |
| Dynamic Load Capacity (kN) | 12.7kN |
| Static Load Capacity (kN) | 17.1kN |
| Max. RPM | 8300 r/min（Grease） |
| Temp. Range (℃) | / |
| Material | Chrome Steel |
| Shield Material | / |
| Lubrication | Grease/oil |
51200 One Direction Thrust Ball Bearings are ideal for high-speed applications where accuracy and low vibration are required. These bearings feature a single row of balls that are precision ground and polished to provide superior performance.
Our friendly and knowledgeable customer service team is always happy to help with any questions you may have about bearings. So don’t hesitate to contact us today!
Other types of thrust ball bearing are also available:51202, 51203, 51104. If you’re interested in our procucts, please feel free to contact us.

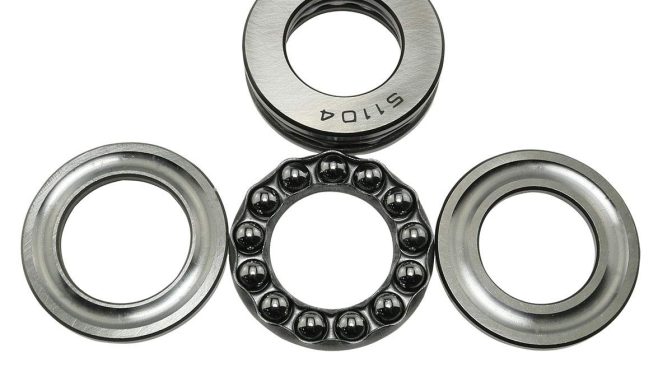

| Spec | 51104 |
| Item | Thrust Ball Bearing |
| Type | / |
| Bore Dia. (d) | 20 mm |
| Outside Dia. (D) | 35 mm |
| Width (B) | 10 mm |
| ABEC Tolerance | / |
| Dynamic Load Capacity (kN) | 14.2kN |
| Static Load Capacity (kN) | 24.7kN |
| Max. RPM | 7500 r/min（Grease） |
| Temp. Range (℃) | / |
| Material | Chrome Steel |
| Shield Material | / |
| Lubrication | Grease/oil |
With Yuanhe prodduct high-quality construction and precision engineering, you can rest assured that 51104 bearing will last and perform well in even the most strenuous situations. Plus, our friendly and knowledgeable customer service team is always happy to help with any questions you may have about bearings. So don’t hesitate to contact us today!
Other types of thrust ball bearing are also available: 51102, 51103, 51108. If you’re interested in our procucts, please feel free to contact us.

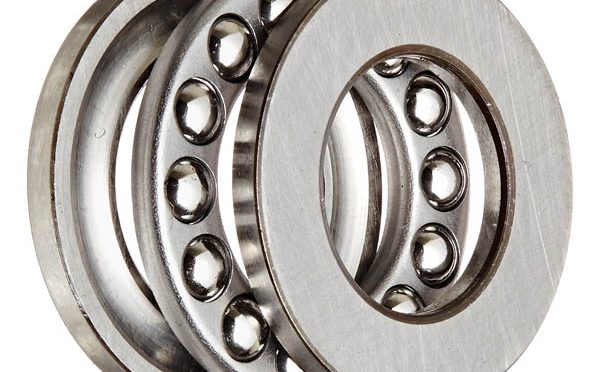

| Spec | 51103 |
| Item | Thrust Ball Bearing |
| Type | / |
| Bore Dia. (d) | 17 mm |
| Outside Dia. (D) | 30 mm |
| Width (B) | 9 mm |
| ABEC Tolerance | / |
| Dynamic Load Capacity (kN) | 10.8kN |
| Static Load Capacity (kN) | 18.2kN |
| Max. RPM | 8500 r/min（Grease） |
| Temp. Range (℃) | / |
| Material | Chrome Steel |
| Shield Material | / |
| Lubrication | Grease/oil |
The 51103 axial deep groove ball bearing is made of chrome steel for strength and durability. It has been lubricated with grease to enable smooth operation. If you have any questions about bearings, please do not hesitate to contact us. We would be happy to help you!
Other types of thrust ball bearing are also available: 51108, 51200, 51203. If you’re interested in our procucts, please feel free to contact us.

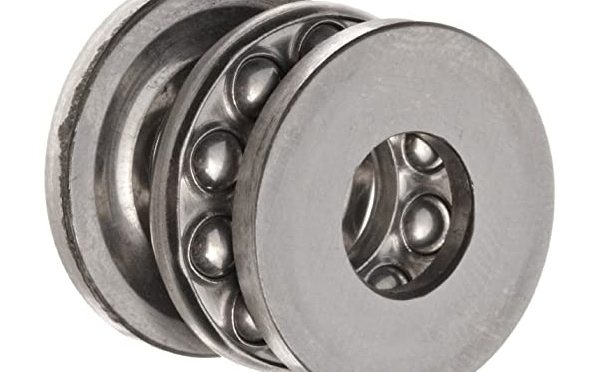

| Spec | 51102 |
| Item | Thrust Ball Bearing |
| Type | / |
| Bore Dia. (d) | 15 mm |
| Outside Dia. (D) | 28 mm |
| Width (B) | 9 mm |
| ABEC Tolerance | / |
| Dynamic Load Capacity (kN) | 10.5kN |
| Static Load Capacity (kN) | 16.8kN |
| Max. RPM | 8800 r/min（Grease） |
| Temp. Range (℃) | / |
| Material | Chrome Steel |
| Shield Material | / |
| Lubrication | Grease/oil |
51102 is a thrust ball bearing that can support heavy loads while maintaining smooth rotation. It is made of durable materials and has been tested to ensure quality and performance. If you have any questions about bearings, please don’t hesitate to contact us. We are here to help!
Other types of thrust ball bearing are also available: 51200, 51201, 51202. If you’re interested in our procucts, please feel free to contact us.
