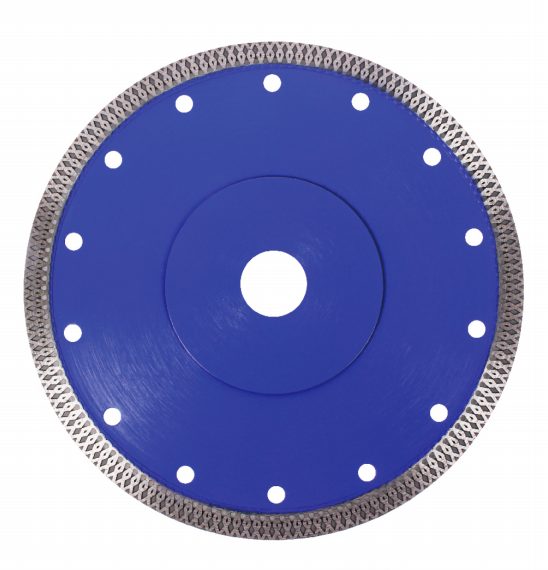

Diamond saw blades

Name: Diamond Saw Blades | Concrete Stone Cutting | Yuanhe
Brand: YUANHE
Availability: InStock
Rating: 4.9 (28 reviews)

Diamond saw blades are built for efficient and precise cutting of concrete, stone, tile, ceramic, granite, and other hard materials. Manufactured with high-quality diamond segments and a durable steel core, they provide fast cutting speed, smooth performance, and long service life. The optimized blade design helps reduce vibration and improve heat dissipation during operation, ensuring stable cutting results. Suitable for construction, stone processing, road work, and industrial applications, these Diamond saw blades are ideal for contractors, distributors, and bulk supply projects.

Request OEM Quotation

For any inquiries, please contact with our Supporting Team at sales@yuanhecd.com.

Diamond saw blades cut the hardest materials on the job site: concrete, reinforced concrete, asphalt, granite, marble, ceramic, tile, and stone. A hardened steel core carries diamond-impregnated segments that grind through material rather than cutting it. The segments use industrial-grade synthetic diamond grit bonded in a metal matrix that wears at a controlled rate, continuously exposing fresh diamond edges. Yuanhe diamond saw blades come in segmented, turbo, and continuous rim types for wet and dry cutting from 100mm to 900mm diameter.

At a Glance

Diamond saw blades grind through concrete, stone, ceramic, and asphalt using diamond-impregnated segments. Available in segmented, turbo, and continuous rim types for different materials and cut finishes. Diameters from 100mm to 900mm for handheld saws, floor saws, and bridge saws.

Technical Specifications

Parameter	Specification
Blade Type	Diamond Saw Blade (Segmented / Turbo / Continuous Rim)
Diameter Range	100mm – 900mm
Segment Height	8mm / 10mm / 12mm / 15mm
Segment Type	Segmented, Turbo, Continuous Rim
Bore Size	20mm / 22.23mm / 25.4mm / 30mm / 50mm / 60mm
Core Material	High-strength alloy steel (65Mn / 75Cr1)
Diamond Grit	Industrial synthetic diamond, 30/40 to 50/60 mesh
Bond Hardness	Soft / Medium / Hard (material-matched)
Cutting Method	Wet and dry cutting
RPM Rating	1,500 – 5,400 RPM (varies by diameter)

Blade Types and Segment Design

Blade Type	Segment Style	Cut Quality	Best For
Segmented	Gaps between segments	Rough to medium	Concrete, reinforced concrete, asphalt, brick
Turbo	Serrated continuous rim	Medium to fine	Granite, hard stone, general masonry
Continuous Rim	Smooth, uninterrupted rim	Fine to ultra-fine	Ceramic tile, marble, porcelain, glass

Bond Hardness Rule

Soft bond for hard materials (granite, engineering brick): the bond wears faster, exposing fresh diamond. Hard bond for soft materials (asphalt, green concrete, limestone): the bond wears slower so the blade lasts longer. Using the wrong bond either glazes the blade (bond too hard for material) or wears it out prematurely (bond too soft for material).

Key Features

1. High-Quality Diamond Segments

Industrial-grade synthetic diamond grit is evenly distributed in a metal bond matrix. The controlled bond wear rate continuously exposes sharp diamond edges for consistent cutting speed throughout blade life. Segments are firmly bonded to the steel core to prevent segment loss during heavy-duty operation.

2. Optimized Heat Dissipation

Segmented blades use the gaps between segments for airflow and debris clearance. Turbo blades use serrated rims to channel air and water through the cut zone. Both designs lower cutting temperature, reduce blade warping, and extend segment life during continuous operation.

3. Vibration Reduction

Laser-cut expansion slots and a precision-ground steel core reduce vibration during cutting. Lower vibration improves cut accuracy, reduces operator fatigue, and prevents micro-cracking in the segment bond. The core undergoes tensioning to maintain flatness at operating RPM.

4. Wet and Dry Cutting Capability

All diamond saw blades support both wet and dry cutting. Wet cutting uses water to cool the blade and suppress dust, extending blade life and improving cut quality on hard materials. Dry cutting is suitable for handheld saws and jobsites without water access. Continuous rim blades for tile and ceramic typically run wet for the best finish.

5. Consistent Quality Control

Every diamond saw blade passes tension testing, bore concentricity measurement, and segment bond strength verification before shipping. Batch consistency ensures the 500th blade cuts the same as the first. Yuanhe supplies diamond saw blades to construction contractors, stone processors, and industrial distributors worldwide.

Material Compatibility Guide

Material	Blade Type	Bond Hardness	Cutting Method
Concrete	Segmented	Medium	Wet or dry
Reinforced Concrete	Segmented	Medium-hard	Wet preferred
Asphalt	Segmented	Hard	Dry
Granite	Turbo / Segmented	Soft	Wet
Marble	Continuous Rim / Turbo	Soft-medium	Wet
Ceramic Tile	Continuous Rim	Medium	Wet
Porcelain	Continuous Rim	Soft	Wet
Brick / Masonry	Segmented	Medium	Wet or dry

Applications

Construction

Cutting concrete slabs, walls, curbs, and pavement in building and infrastructure projects.

Stone Processing

Slab cutting, block squaring, and shaping of granite, marble, and natural stone.

Road Work

Asphalt and concrete cutting for road repair, expansion joints, and utility access.

Tile Production

Precision cutting of ceramic, porcelain, and glass tiles in manufacturing facilities.

Demolition

Heavy-duty cutting of reinforced concrete, steel-embedded structures, and foundations.

Industrial Workshops

General fabrication, custom stone work, and specialty cutting applications.

Compatible Equipment

Machine Type	Typical Diameter	Common Use
Handheld Circular Saw	100mm – 230mm	On-site cutting, small jobs
Floor Saw / Walk-Behind Saw	300mm – 600mm	Concrete slabs, road cutting
Bridge Saw	350mm – 900mm	Stone slab processing, granite cutting
Table Saw / Tile Saw	180mm – 300mm	Ceramic tile, porcelain, marble
Angle Grinder	100mm – 125mm	Small cuts, finishing, tile work

FAQ

What is the difference between segmented, turbo, and continuous rim diamond blades? +

Segmented blades have gaps between diamond segments for airflow and debris clearance. They cut fastest and work on concrete, asphalt, and brick. Turbo blades have a serrated continuous rim that balances speed with a smoother finish on granite and hard stone. Continuous rim blades have a smooth, uninterrupted diamond edge for the finest cuts on ceramic tile, porcelain, and marble.

Should I cut wet or dry with diamond saw blades? +

Wet cutting extends blade life, suppresses dust, and produces better cut quality on hard, dense materials like granite and porcelain. Use wet cutting when water access is available. Dry cutting works for handheld saws, outdoor jobs, and materials like asphalt. Segmented blades handle dry cutting best because the gaps dissipate heat. Continuous rim blades should almost always run wet.

Why does bond hardness matter for diamond blades? +

The metal bond holds diamond grit in place. A soft bond wears faster, exposing fresh diamond more quickly. Use soft bonds on hard materials like granite and porcelain. A hard bond wears slower. Use hard bonds on soft, abrasive materials like asphalt and green concrete. Wrong bond selection causes either glazing (no cutting, blade overheats) or rapid wear (blade life too short).

How long do diamond saw blades last? +

Blade life depends on material, bond hardness, and cutting conditions. A segmented blade cutting cured concrete with correct bond typically lasts 50 to 200 linear meters per millimeter of segment height. A 10mm segment height gives 500 to 2,000 linear meters of cutting. Hard, abrasive materials consume segments faster. Wet cutting typically extends life 20% to 40% compared to dry cutting.

Can diamond blades cut reinforced concrete with rebar? +

Yes. Use segmented diamond saw blades with a medium-hard bond designed for reinforced concrete. The diamond segments cut through both the concrete matrix and embedded steel rebar. Running wet reduces heat when the blade contacts steel. Expect 15% to 30% faster segment wear compared to cutting non-reinforced concrete because steel is tougher on diamond grit.

Can Yuanhe supply custom diamond saw blades for specific materials? +

Yes. Yuanhe manufactures diamond saw blades with custom diameters, segment heights, bond formulations, and bore sizes. Specify your material (concrete type, stone variety, aggregate hardness) and cutting conditions. Our engineers select the optimal diamond grit, bond hardness, and segment design for your application. Contact Yuanhe with your specification.

Need Diamond Saw Blades for Your Cutting Application?

Standard diameters from 100mm to 900mm. Segmented, turbo, and continuous rim types. Custom bond formulations and segment heights available. Send your material and specification for a quote.

Request a Quote

,”url”:”https://www.yuanhecd.com/diamond-saw-blades/”}

Item No	OUTER DIAMETER		ARBOR SIZE	SEGMENT DIMENSION
Item No	INCHES	METRIC(mm)	ARBOR SIZE	SEGMENT DIMENSION
1204	4″	105	20/22.23	1.2*10
1245	4.5″	115	20/22.23	1.2*10
1205	5″	125	20/22.23	1.2*10
1207	7″	180	20/22.23	1.6*10
1209	9″	230	20/22.23	1.8*10

Cut materials:	ceramic.marble,tile
Diamond type/grade:	26KG, 18KG
Diamond size/mesh:	60/70 80%, 70/80 20%
Diamond concentration:	25%
Bond hardness:	HRB90
Bond materials:	Cu,Fe,Sn,Ni,Co

Item No	OUTER DIAMETER		ARBOR SIZE	SEGMENT DIMENSION
Item No	INCHES	METRIC(mm)	ARBOR SIZE	SEGMENT DIMENSION
1204	4″	105	20/22.23	1.2*10
1245	4.5″	115	20/22.23
1205	5″	125	20/22.23
1207	7″	180	20/22.23	1.6*10
1209	9″	230	20/22.23	1.8*10

Cut materials:	ceramic.marble,tile
Diamond type/grade:	26KG, 18KG
Diamond size/mesh:	60/70 80%, 70/80 20%
Diamond concentration:	25%
Bond hardness:	HRB90
Bond materials:	Cu,Fe,Sn,Ni,Co

Item No	OUTER DIAMETER		ARBOR SIZE	SEGMENT DIMENSION
Item No	INCHES	METRIC(mm)	ARBOR SIZE	SEGMENT DIMENSION
1304	4″	105	20/22.23	2.2*10
1345	4.5″	115	20/22.23	2.2*10
1305	5″	125	20/22.23	2.2*10
1306	6″	150	20/22.23	2.2*10
1307	7″	180	20/22.23	2.4*10
1309	9″	230	20/22.23	2.6*10
1312	12″	300	25.4/50	2.8*10
1314	14″	350	25.4/50	3.0*10

Cut materials:	granite,marble,concrete
Diamond type/grade:	30KG, 18KG
Diamond size/mesh:	35/40 40%, 40/50 60%
Diamond concentration:	25%
Bond hardness:	HRB95
Bond materials:	Cu,Fe,Sn,Ni,Co

Item No	OUTER DIAMETER		ARBOR SIZE	SEGMENT DIMENSION
Item No	INCHES	METRIC(mm)	ARBOR SIZE	SEGMENT DIMENSION
1845	4.5″	115	20/22.23	2.2*8.5
1805	5″	125	20/22.23	2.2*8.5
1806	6″	150	20/22.23	2.2*8.5
1807	7″	180	20/22.23	2.6*8.5
1809	9″	230	20/22.23	2.6*8.5

Cut materials:	granite,marble,concrete
Diamond type/grade:	30KG, 18KG
Diamond size/mesh:	35/40 40%, 40/50 60%
Diamond concentration:	25%
Bond hardness:	HRB95
Bond materials:	Cu,Fe,Sn,Ni,Co

Item No	OUTER DIAMETER		ARBOR SIZE	SEGMENT DIMENSION
Item No	INCHES	METRIC(mm)	ARBOR SIZE	SEGMENT DIMENSION
1945	4.5″	115	20/22.23	2.2*10
1907	7″	180	20/22.23	2.8*10

Cut materials:	granite,marble,concrete
Diamond type/grade:	30KG, 18KG
Diamond size/mesh:	35/40 40%, 40/50 60%
Diamond concentration:	25%
Bond hardness:	HRB95
Bond materials:	Cu,Fe,Sn,Ni,Co

Item No	OUTER DIAMETER		ARBOR SIZE	SEGMENT DIMENSION
Item No	INCHES	METRIC(mm)	ARBOR SIZE	SEGMENT DIMENSION
2004	4″	105	20/22.23	1.2/1.6*7
2043	4.3″	110	20/22.23	1.2/1.6*7
2045	4.5″	115	20/22.23	1.2/1.6*7
2005	5″	125	20/22.23	1.2/1.6*7
2006	6″	150	20/22.23	1.8*10
2007	7″	180	20/22.23	2.0*10
2008	8″	200	20/22.23	2.0*10
2009	9″	230	20/22.23	2.2*10
2010	10″	250	25.4/50	2.2*10
2012	12″	300	25.4/50	2.6*10
2014	14″	350	25.4/50	2.8*10

Cut materials:	ceramic.marble,tile
Diamond type/grade:	26KG, 18KG
Diamond size/mesh:	60/70 80%, 70/80 20%
Diamond concentration:	25%
Bond hardness:	HRB90
Bond materials:	Cu,Fe,Sn,Ni,Co

Item No	OUTER DIAMETER		ARBOR SIZE	SEGMENT DIMENSION
Item No	INCHES	METRIC(mm)	ARBOR SIZE	SEGMENT DIMENSION
2104	4″	105	20/22.23	1.2*7
2143	4.3″	110	20/22.23	1.2*7
2145	4.5″	115	20/22.23	1.2*7
2105	5″	125	20/22.23	1.2*7
2107	7″	180	20/22.23	1.6*7

Cut materials:	granite,marble,concrete
Diamond type/grade:	30KG, 18KG
Diamond size/mesh:	60/70 80%, 70/80 20%
Diamond concentration:	25%
Bond hardness:	HRB90
Bond materials:	Cu,Fe,Sn,Ni,Co

Item No	OUTER DIAMETER		ARBOR SIZE	SEGMENT DIMENSION
Item No	INCHES	METRIC(mm)	ARBOR SIZE	SEGMENT DIMENSION
2345	4.5″	115	20/22.23	2.4*10
2305	5″	125	20/22.23	2.4*10
2306	6″	150	20/22.23	2.6*10
2307	7″	180	20/22.23	2.6*10

Cut materials:	granite,marble,concrete
Diamond type/grade:	30KG, 18KG
Diamond size/mesh:	30/40 40%, 40/50 60%
Diamond concentration:	25%
Bond hardness:	HRB95
Bond materials:	Cu,Fe,Sn,Ni,Co

Item No	OUTER DIAMETER		ARBOR SIZE	SEGMENT DIMENSION
Item No	INCHES	METRIC(mm)	ARBOR SIZE	SEGMENT DIMENSION
2404	4″	105	20/22.23	2.2*10
2445	4.5″	115	20/22.23	2.2*10
2405	5″	125	20/22.23	2.2*10
2406	6″	150	20/22.23	2.2*10
2407	7″	180	20/22.23	2.4*10
2409	9″	230	20/22.23	2.6*10
2412	12″	300	25.4/50	2.8*10
2414	14″	350	25.4/50	3.0*10

Cut materials:	granite,marble,concrete
Diamond type/grade:	30KG, 18KG
Diamond size/mesh:	35/40 40%, 40/50 60%
Diamond concentration:	20%
Bond hardness:	HRB95
Bond materials:	Cu,Fe,Sn,Ni,Co

Item No	OUTER DIAMETER		ARBOR SIZE	SEGMENT DIMENSION
Item No	INCHES	METRIC(mm)	ARBOR SIZE	SEGMENT DIMENSION
2504	4″	105	20/22.23	20*5
2545	4.5″	115	20/22.23	20*5
2505	5″	125	20/22.23	20*5
2506	6″	150	20/22.23	20*5
2507	7″	180	20/22.23	20*5

Cut materials:	granite,marble,concrete
Diamond type/grade:	30KG, 18KG
Diamond size/mesh:	35/40 40%, 40/50 60%
Diamond concentration:	25%
Bond hardness:	HRB80
Bond materials:	Cu,Fe,Sn,Ni,Co
