Deep Groove Ball Bearing

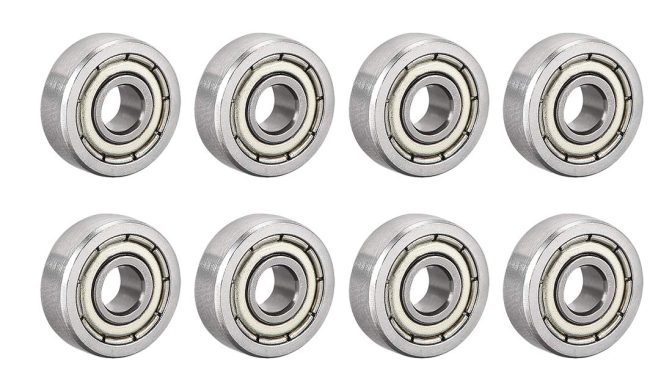

604-ZZ Shield Ball Bearings

Leave a comment

Technical Specs

Model 604-ZZ
Item Miniature Ball Bearings
Type Shielded
Bore Dia. 4 mm
Outside Dia. 12 mm
Width 4 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 0.81kN
Static Load Capacity (kN) 0.28kN
Max. RPM 48,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material （SPCC）
Mild steel ( SPCC)
Lubrication Grease

The 604-ZZ ball bearing has two non-contact guards on each side of the ball bearing. If you have special needs for products or want to know more information and get a quotation, you can contact our professional customer service team, and we will recommend the most suitable bearing for you according to your needs.

Deep Groove Ball Bearing

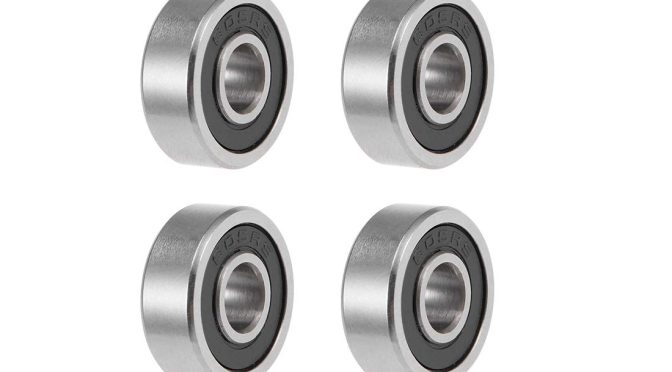

605-2RS Shielded Ball Bearings

Leave a comment

Technical Specs

Model 605-2RS
Item Miniature Ball Bearings
Type Shielded
Bore Dia. 5 mm
Outside Dia. 14 mm
Width 5 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 1.02kN
Static Load Capacity (kN) 0.49kN
Max. RPM 46,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material （NBR+SPCC）
Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

605-2RS Shielded ball bearing has two non-contacting/contacting rubber seals on each side of the ball bearing. If your application requires a 605 ball bearing with only one seal or no seal, you can contact us for a custom order. For more needs, please contact our professional account team, we will be happy to help you!

Deep Groove Ball Bearing

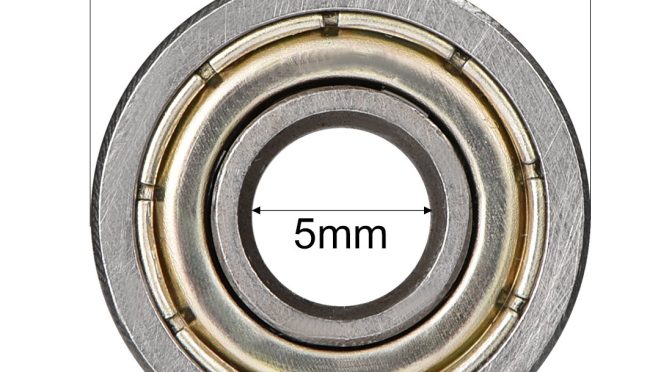

605-ZZ Shield Ball Bearings

Leave a comment

Technical Specs

Model 605-ZZ
Item Miniature Ball Bearings
Type Shielded
Bore Dia. 5 mm
Outside Dia. 14 mm
Width 5 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 1.02kN
Static Load Capacity (kN) 0.49kN
Max. RPM 46,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material （SPCC）
Mild steel ( SPCC)
Lubrication Grease

The 605-ZZ ball bearing has two non-contact guards on each side of the ball bearing. If you have special needs for products or want to know more information and get a quotation, you can contact our professional customer service team, and we will recommend the most suitable bearing for you according to your needs.

Deep Groove Ball Bearing

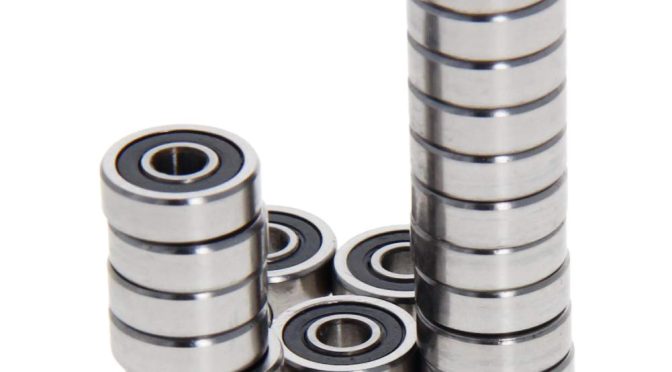

604-2RS Shielded Ball Bearings

Leave a comment

Technical Specs

Model 604-2RS
Item Miniature Ball Bearings
Type Shielded
Bore Dia. 4 mm
Outside Dia. 12 mm
Width 4 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 0.81kN
Static Load Capacity (kN) 0.28kN
Max. RPM 48,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material （NBR+SPCC）
Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

604-2RS Shielded ball bearing has two non-contacting/contacting rubber seals on each side of the ball bearing. If your application requires a 604 ball bearing with only one seal or no seal, you can contact us for a custom order. For more needs, please contact our professional account team, we will be happy to help you!

Deep Groove Ball Bearing

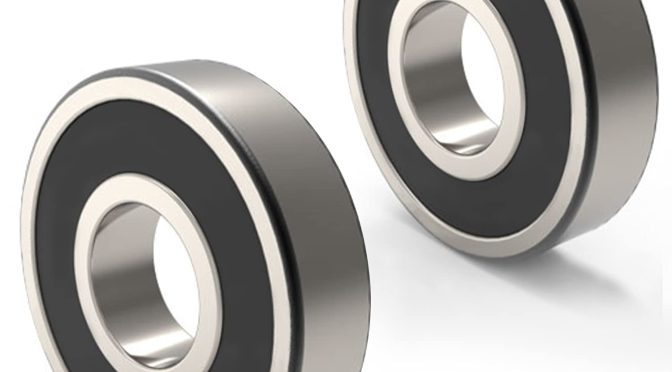

609-2RS Shielded Ball Bearings

Leave a comment

Technical Specs

Model 609-2RS
Item Miniature Ball Bearings
Type Shielded
Bore Dia. 9 mm
Outside Dia. 24 mm
Width 7 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 3.90kN
Static Load Capacity (kN) 1.66kN
Max. RPM 35,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material (NBR+SPCC）Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

609-2RS Shielded ball bearing has two non-contacting/contacting rubber seals on each side of the ball bearing. If your application requires a 609 ball bearing with only one seal or no seal, you can contact us for a custom order. For more needs, please contact our professional account team, we will be happy to help you!

Deep Groove Ball Bearing

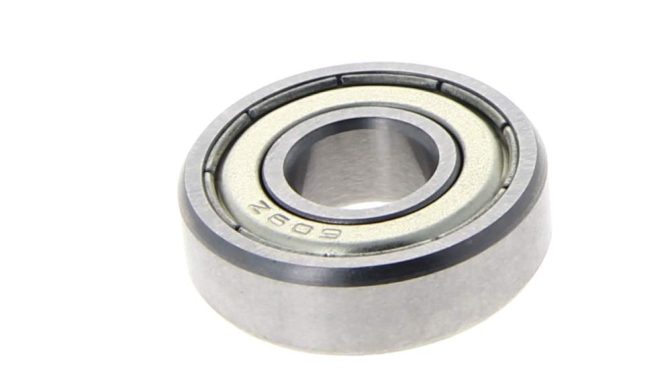

609-ZZ Shield Ball Bearings

Leave a comment

Technical Specs

Model 609-ZZ
Item Miniature Ball Bearings
Type Shielded
Bore Dia. 9 mm
Outside Dia. 24 mm
Width 7 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 3.90kN
Static Load Capacity (kN) 1.66kN
Max. RPM 35,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material （SPCC）
Mild steel ( SPCC)
Lubrication Grease

The 609-ZZ ball bearing has two non-contact guards on each side of the ball bearing. If you have special needs for products or want to know more information and get a quotation, you can contact our professional customer service team, and we will recommend the most suitable bearing for you according to your needs.

Deep Groove Ball Bearing

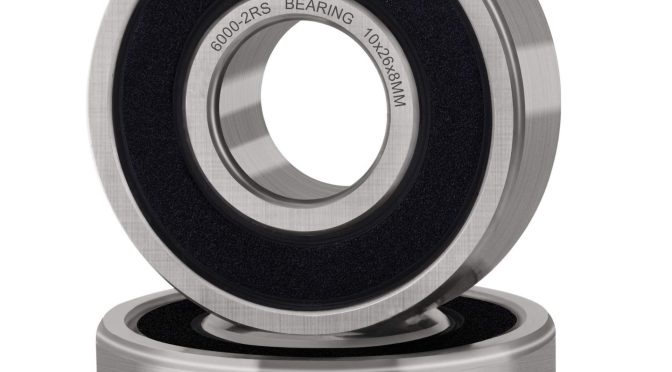

6000-2RS Shielded Ball Bearings

Leave a comment

Technical Specs

Model 6000-2RS
Item Small ball bearing
Type Shielded
Bore Dia. 10 mm
Outside Dia. 28 mm
Width 8 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 4.75kN
Static Load Capacity (kN) 1.96kN
Max. RPM 33,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material (NBR+SPCC) Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

6000-2RS Shielded ball bearing has two non-contacting/contacting rubber seals on each side of the ball bearing. If your application requires a 6000 ball bearing with only one seal or no seal, you can contact us for a custom order. For more needs, please contact our professional account team, we will be happy to help you!

Deep Groove Ball Bearing

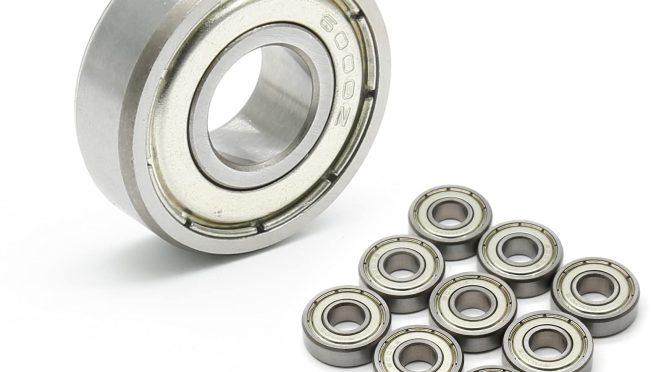

6000-ZZ Shield Ball Bearings

Leave a comment

Technical Specs

Model 6000-ZZ
Item Small ball bearing
Type Shielded
Bore Dia. 10 mm
Outside Dia. 28 mm
Width 8 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 4.75kN
Static Load Capacity (kN) 1.96kN
Max. RPM 33,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material （SPCC）
Mild steel ( SPCC)
Lubrication Grease

The 6000-ZZ ball bearing has two non-contact guards on each side of the ball bearing. If you have special needs for products or want to know more information and get a quotation, you can contact our professional customer service team, and we will recommend the most suitable bearing for you according to your needs.

Deep Groove Ball Bearing

6002-2RS Shielded Ball Bearings

Leave a comment

Technical Specs

Model 6002-2RS
Item Small ball bearing
Type Shielded
Bore Dia. 15 mm
Outside Dia. 32 mm
Width 9 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 5.85kN
Static Load Capacity (kN) 2.85kN
Max. RPM 24,000 RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material (NBR+SPCC）Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

6002-2RS deep groove ball bearings have two non-contact/contact rubber boots on each side of the bearing. If your application requires a 6002 ball bearing with only one guard or no guard, you can contact us and our engineers will help you choose the best bearing model for your application.

Deep Groove Ball Bearing

6002-ZZ Shielded Ball Bearings

Leave a comment

Technical Specs

Model 6002-ZZ
Item Small ball bearing
Type Shielded
Bore Dia. 15 mm
Outside Dia. 32 mm
Width 9 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 5.85kN
Static Load Capacity (kN) 2.85kN
Max. RPM 24,000 RPM
Temp. Range (℃) -40~120℃
Material Mild steel (SPCC)
Shield Material Steel
Lubrication Grease

6002-ZZ deep groove ball bearings have two non-contact metal guards on each side of the bearing. If you need a 6002 ball bearing with only one guard or no guard, want more information or get a quote for a 6002-ZZ bearing, please contact our customer support team and we will be happy to help!
