Monthly Archives: March 2022

Deep Groove Ball Bearing

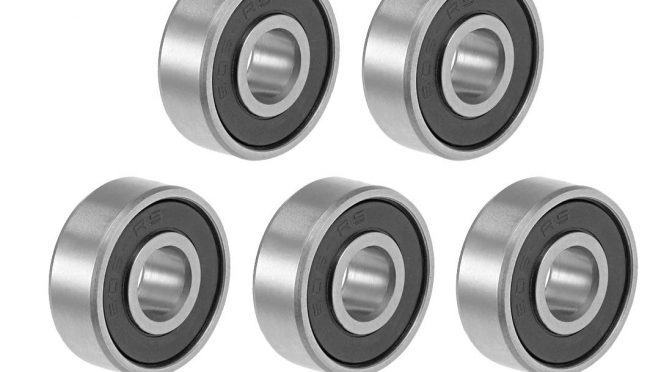

606-2RS Shielded Ball Bearings

Leave a comment

Technical Specs

Spec 606-2RS
Item Miniature Ball Bearings
Type Shielded
Bore Dia. 6 mm
Outside Dia. 17 mm
Width 6 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 1.95kN
Static Load Capacity (kN) 0.83kN
Max. RPM 45,000RPM
Temp. Range (℃) -40~120℃
Material Mild steel (SPCC)
Shield Material Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

606-2RS Shielded ball bearing has two non-contacting/contacting rubber seals on each side of the ball bearing. If your application requires a 606 ball bearing with only one seal or no seal, you can contact us for a custom order. For more needs, please contact our professional account team, we will be happy to help you!

606-2RS Shielded Ball Bearings - Yuanhe
Deep Groove Ball Bearing

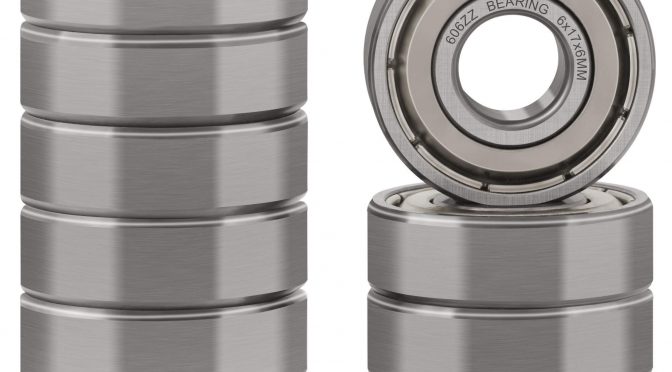

606-ZZ Shielded Ball Bearings

Leave a comment

Technical Specs

Spec 606-ZZ
Item Miniature Ball Bearings
Type Shielded
Bore Dia. 6 mm
Outside Dia. 17 mm
Width 6 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 1.95kN
Static Load Capacity (kN) 0.83kN
Max. RPM 45,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material Mild steel ( SPCC)
Lubrication Grease

606-ZZ miniature deep groove ball bearings are widely used in life and production, such as garden tools, logistics transmission equipment, industrial automation equipment, etc. Seals on both sides of the ball bearing keep bearing lubricant inside while preventing contamination from entering the bearing chamber.

606-2Z Shielded Ball Bearings - Yuanhe
Deep Groove Ball Bearing

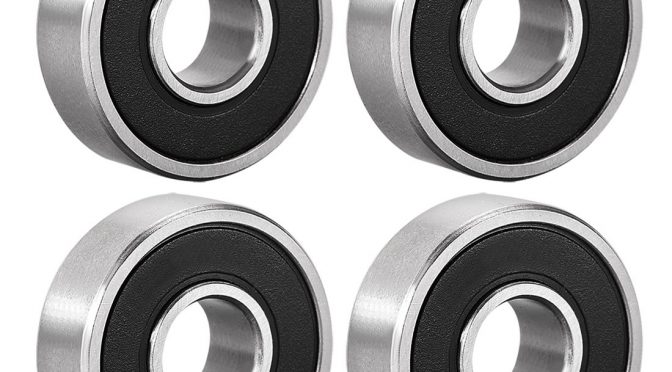

607-2RS Shielded Ball Bearings

Leave a comment

Technical Specs

Spec 607-2RS
Item Miniature Ball Bearings
Type Shielded
Bore Dia. 7 mm
Outside Dia. 19 mm
Width 6 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 2.34kN
Static Load Capacity (kN) 0.95kN
Max. RPM 43,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

607-2RS ball bearing has two non-contact/contact rubber seals on each side of the ball bearing, if you have special needs, you can contact us for customization. For more needs, please contact our professional account team, we will be happy to help you!

607-2RS Shielded Ball Bearings - Yuanhe
Deep Groove Ball Bearing

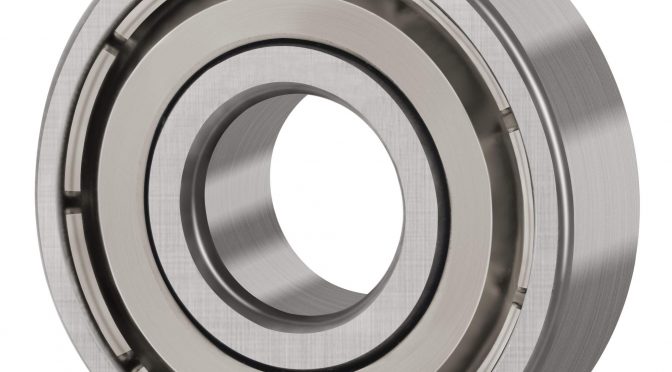

607-ZZ Shielded Ball Bearings

Leave a comment

Technical Specs

Spec 607-ZZ
Item Miniature Ball Bearings
Type Shielded
Bore Dia. 7 mm
Outside Dia. 19 mm
Width 6 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 2.34kN
Static Load Capacity (kN) 0.95kN
Max. RPM 43,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material Mild steel ( SPCC)
Lubrication Grease

The 607-ZZ ball bearing has two non-contacting metal guards on each side of the ball bearing. If your application requires a 607 ball bearing with only one guard, you can contact our dedicated customer service team and we can customize it for your needs!

607-2Z Shielded Ball Bearings - Yuanhe
Deep Groove Ball Bearing

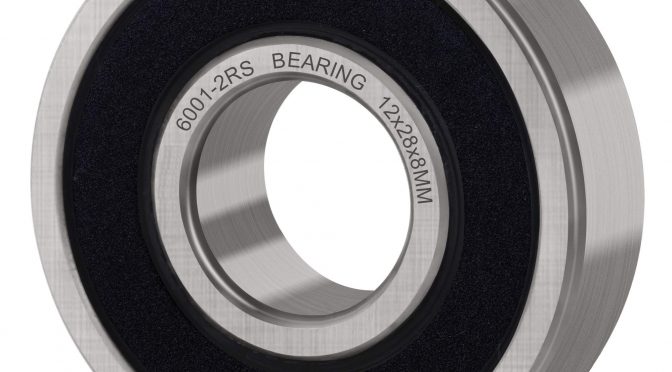

6001 2RS 12x28x8 Rubber Seal Bearings

Leave a comment

Part Number 6001 2RS

Deep groove ball bearing drawing
Spec 6001 2RS
Item Miniature Ball Bearings
Type Shielded
Bore Dia (d). 12 mm
Outside Dia (D). 28 mm
Width (B) 8 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 5.4kN
Static Load Capacity (kN) 2.36kN
Max. RPM 30,000 RPM
Temp. Range (℃) -40~120℃
Material Nitrile rubber + mild steel (NBR + SPCC)
Shield Material Steel
Lubrication Grease

6001 2RS rubber seal bearings have a non-contacting or contacting rubber seal on each side of the bearing. Should your application necessitate the use of a 6201 ball bearing with or without a seal, please do not hesitate to contact us. Our engineers will be happy to assist you in making your choice.

Other types of ball bearings are also available: 6002 ZZ, 6002 2RS, 6001 ZZ, 6003 2RS, 6003 ZZ, 6004 2RS. If you’re interested in our procucts, please feel free to contact us.

Deep Groove Ball Bearing

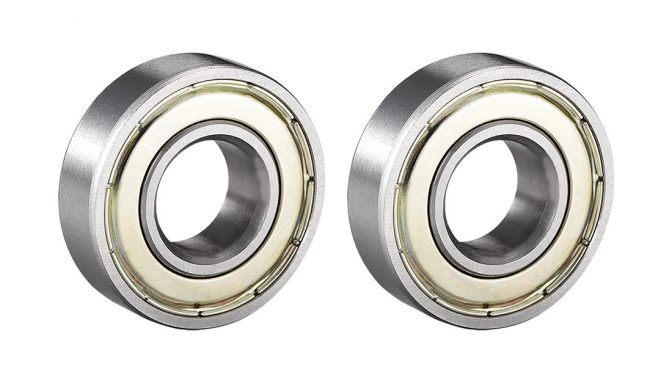

6001-ZZ Shielded Ball Bearings

Leave a comment

Technical Specs

Spec 6001-ZZ
Item Miniature Ball Bearings
Type Shielded
Bore Dia. 12 mm
Outside Dia. 28 mm
Width 8 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 5.4kN
Static Load Capacity (kN) 2.36kN
Max. RPM 30,000 RPM
Temp. Range (℃) -40~120℃
Material Mild steel (SPCC)
Shield Material Steel
Lubrication Grease

6001-ZZ deep groove ball bearings have two non-contact metal guards on each side of the bearing. If you need a 6201 ball bearing with only one guard or no guard, want more information or get a quote for a 6001-ZZ bearing, please contact our customer support team and we will be happy to help!

6001-2Z Shielded Ball Bearings - Yuanhe
Deep Groove Ball Bearing

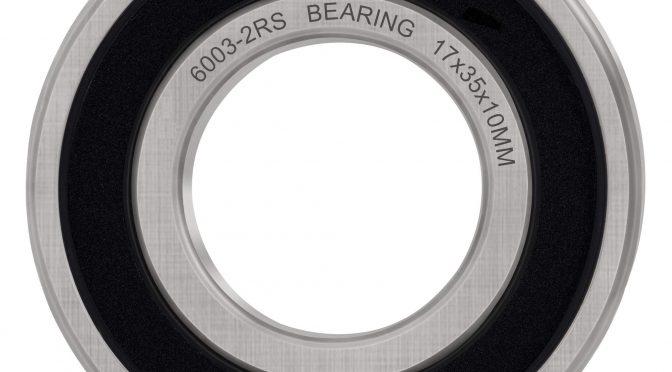

6003-2RS Shielded Ball Bearings

Leave a comment

Technical Specs

Spec 6003-2RS
Item Small ball bearing
Type Shielded
Bore Dia. 17 mm
Outside Dia. 35 mm
Width 10 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 6.37kN
Static Load Capacity (kN) 3.25kN
Max. RPM 32,000RPM
Temp. Range (℃) -40~120℃
Material steel (SPCC)
Shield Material Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

6003-2RS deep groove ball bearings have two non-contact/contact rubber boots on each side of the bearing. If you have special requirements for 6003 ball bearings, you can contact us, and our engineers will help you choose the most suitable bearing model for your application.

6003-2RS Shielded Ball Bearings - Yuanhe
Deep Groove Ball Bearing

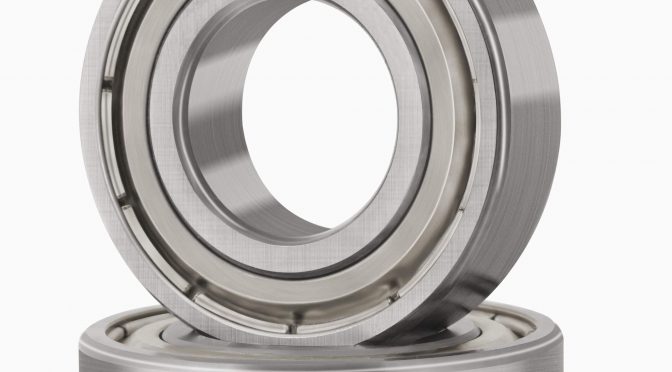

6003-ZZ Shielded Ball Bearings

Leave a comment

Technical Specs

Spec 6003-ZZ
Item Small ball bearing
Type Shielded
Bore Dia. 17 mm
Outside Dia. 35 mm
Width 10 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 6.37kN
Static Load Capacity (kN) 3.25kN
Max. RPM 32,000RPM
Temp. Range (℃) -40~120℃
Material steel (SPCC)
Shield Material Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

6003-ZZ deep groove ball bearings have two non-contact metal guards on each side of the bearing. If you need a 6003 ball bearing with only one guard or no guard or to get a quote for a 6001-ZZ bearing, please contact our customer support team and we will be happy to assist you!

6003-2Z Shielded Ball Bearings - Yuanhe
