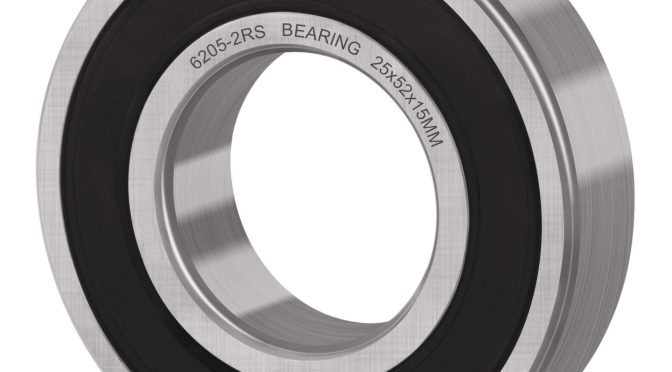

6205 2RS Metric Sealed Ball Bearings

Part Number 6205 2RS

Deep groove ball bearing drawing
Spec 6205-2RS
Item Small deep groove bearing
Type Shielded
Bore Dia (d). 25 mm
Outside Dia (D). 52 mm
Width (B) 15 mm
ABEC Tolerance 1
Dynamic Load Capacity (kN) 14.8kN
Static Load Capacity (kN) 7.8kN
Max. RPM 16,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material (NBR+SPCC)Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

6205 2RS ball bearings are widely used in industrial and automation applications. They are designed to reduce rotational friction and support loads. The load is evenly applied to the balls, and as the inner bearing race rotates, the balls rotate with it.

For more information or to get a quote for the 6205 2RS bearing, please contact us and we will be happy to assist you!

Other types of ball bearings are also available: 696 ZZ, 695 2RS, 694 ZZ, 693 ZZ, 685 ZZ, 684 2RS. If you’re interested in our procucts, please feel free to contact us.

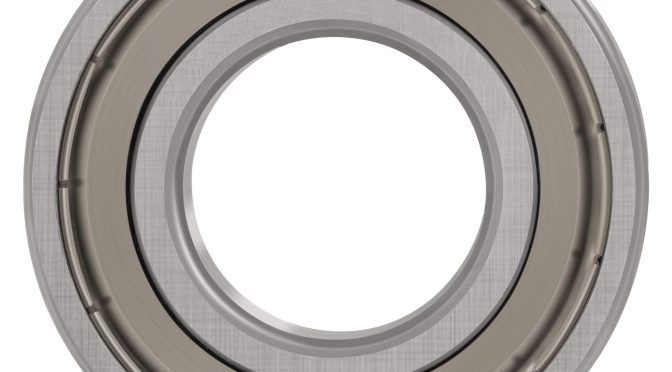

6205-ZZ Shielded Ball Bearings

Technical Specs

Spec 6205-ZZ
Item Small deep groove bearing
Type Shielded
Bore Dia. 25 mm
Outside Dia. 52 mm
Width 15 mm
ABEC Tolerance 2
Dynamic Load Capacity (kN) 14.8kN
Static Load Capacity (kN) 7.8kN
Max. RPM 16,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material (SPCC)Mild steel ( SPCC)
Lubrication Grease

6205-ZZ deep groove ball bearing is a single row bearing that can withstand radial loads,and is constructed of chrome steel for superior quality and durability. It is pre-lubricated and sealed to keep lubricants out and keep out contaminants, dirt and debris. If you need more quotations for rolling bearings, you can contact our professional customer support team, we will be happy to help you efficiently!

6205-ZZ Shield Ball Bearings odm - Yuanhe

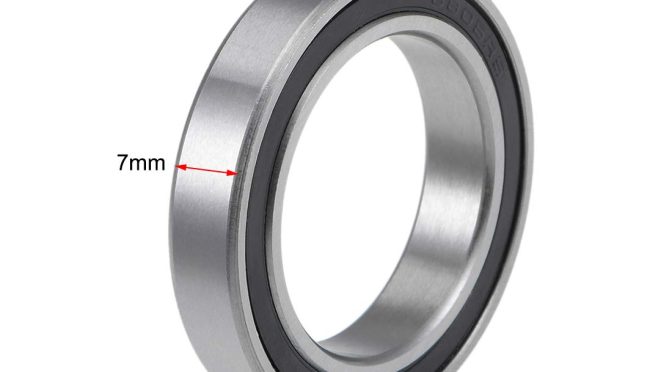

6805-2RS Shield Ball Bearings

Technical Specs

Spec 6805-2RS
Item Small deep groove bearing
Type Shielded
Bore Dia. 25 mm
Outside Dia. 37 mm
Width 7mm
ABEC Tolerance 1
Dynamic Load Capacity (kN) 4.36kN
Static Load Capacity (kN) 2.6kN
Max. RPM 11,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

6805-2RS ball bearing has two non-contact/contact guards on each side of the ball bearing. If you have special needs for products or want to know more information and get a quotation, you can contact us, and we will recommend the most suitable solution for you according to your needs.

6805-2RS Shield Ball Bearings manufactor - Yuanhe

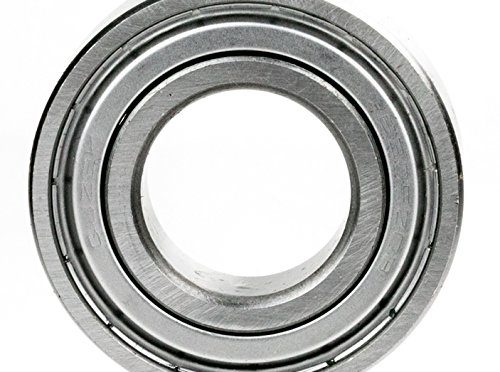

6805-ZZ Shield Ball Bearings

Technical Specs

Spec 6805-ZZ
Item Small deep groove bearing
Type Shielded
Bore Dia. 25 mm
Outside Dia. 37 mm
Width 7 mm
ABEC Tolerance 1
Dynamic Load Capacity (kN) 4.36kN
Static Load Capacity (kN) 2.6kN
Max. RPM 11,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material Mild steel ( SPCC)
Lubrication Grease

The 6805-ZZball bearing has two non-contact guards on each side of the ball bearing. If you have special needs for products or want to know more information and get a quotation, you can contact our professional customer service team, and we will recommend the most suitable bearing for you according to your needs.

6805-ZZ Shield Ball Bearings supplier - Yuanhe
