German696 2RS bearing
Double rubber sealed, pre-lubricated miniature bearing for high-speed applications. 6mm bore, 15mm OD, 5mm width. ABEC-3 precision tolerance, 44,000 RPM max speed.

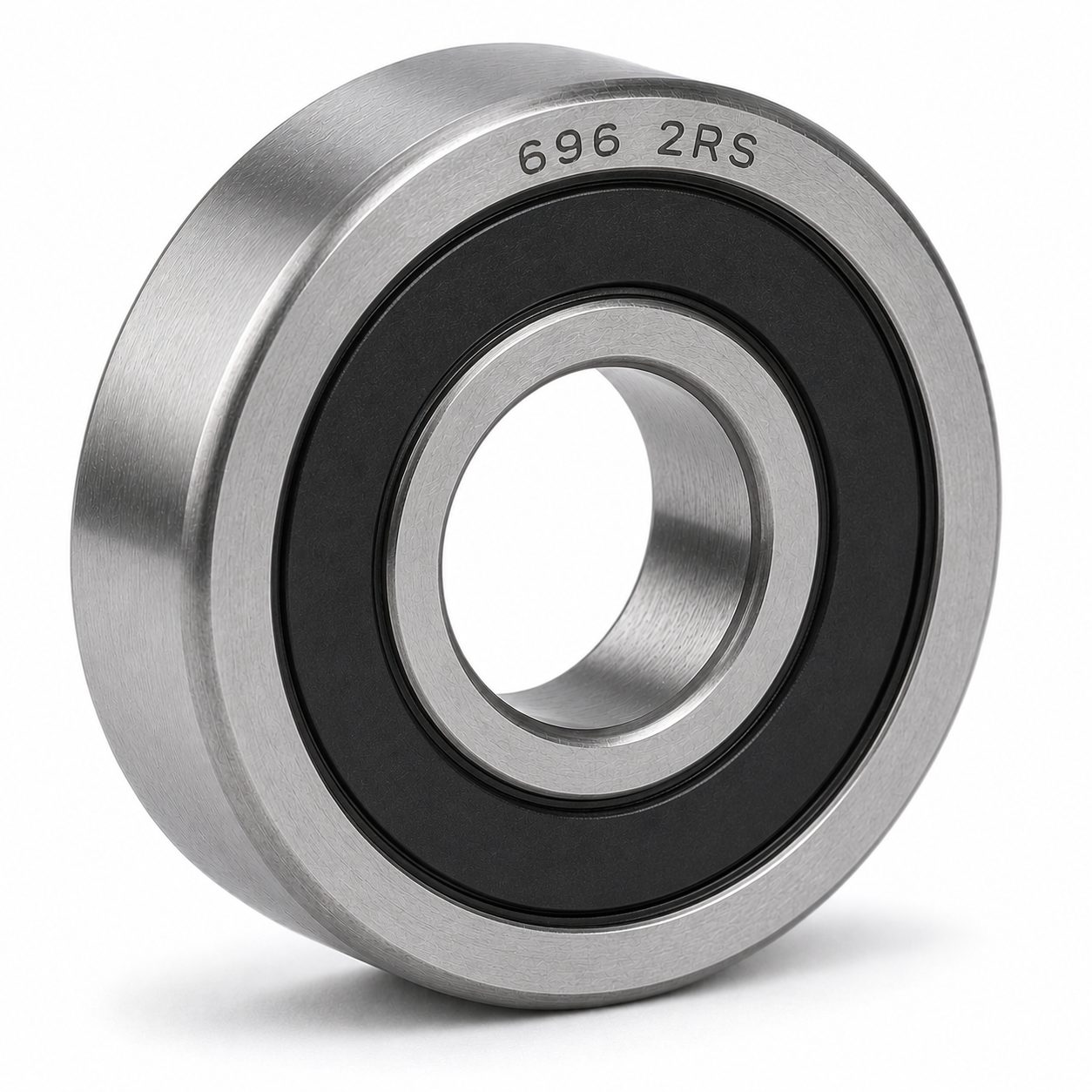

696 2RS Miniature Deep Groove Ball Bearing 6x15x5mm
Double rubber sealed, pre-lubricated miniature bearing for high-speed applications. 6mm bore, 15mm OD, 5mm width. ABEC precision tolerance, 44,000 RPM max.
Key Specifications
- Double rubber seals (NBR+SPCC): lubricated for life, maintenance-free
- 44,000 RPM max speed; 1.35kN dynamic / 0.53kN static load capacity
- Radial and axial loads in both directions
- Operating temperature: -40°C to 120°C
- Chrome steel (GCr15), ABEC precision tolerance
For any inquiries, please contact with our Supporting Team at sales@yuanhecd.com.
| Model | 696 2RS |
| Type | Shielded |
| Bore Dia (d). | 6 mm |
| Outside Dia (D). | 15 mm |
| Width (B) | 5 mm |
| ABEC Tolerance | 3 |
| Dynamic Load Capacity (kN) | 1.35kN |
| Static Load Capacity (kN) | 0.53kN |
| Max. RPM | 44,000RPM |
| Temp. Range (℃) | -40~120℃ |
| Material | Steel |
| Shield Material | (NBR+SPCC) Nitrile rubber + mild steel (NBR + SPCC) |
| Lubrication | Grease |
Double rubber sealed, pre-lubricated miniature bearing for high-speed applications. 6mm bore, 15mm OD, 5mm width. ABEC-3 precision tolerance, 44,000 RPM max speed.
Bore x OD x Width
6 x 15 x 5 mm
Dynamic Load Cr
1.35 kN
Max Speed
44,000 RPM
Sealing
NBR 2RS
Precision
ABEC-3
Static Load Cor
0.53 kN
Sealing and Lubrication
The 2RS designation indicates double nitrile rubber seals (NBR+SPCC) on both sides. These seals retain the factory-packed high-temperature grease and block dust and moisture ingress. The bearing is lubricated for life; no relubrication is required across its service temperature range of -40C to 120C.
Performance
Single-row deep groove geometry handles combined radial and axial loads. This bearing is part of our deep groove ball bearing range, available in bore sizes from 3mm to 100mm. Chrome steel (GCr15) construction with ABEC precision tolerance, manufactured to precision bearing standards. Dynamic load rating 1.35kN, static load rating 0.53kN. Supports speeds up to 44,000 RPM with low noise and low vibration.
OEM and Customization
Custom internal clearance (C2, CN, C3) and grease type available for volume orders. Batch-level QC reports and dimensional tolerance documentation provided on request. Submit your custom bearing specification for a quote.
Applications
Clutches, drives, gearboxes
Compressors, pumps, turbines
Printing and textile machinery
Agricultural equipment
Automotive components
Outdoor power equipment
Frequently Asked Questions
What does 2RS mean on a bearing? +
2RS indicates the bearing has two rubber seals, one on each side. These nitrile rubber (NBR) seals with SPCC steel backing prevent lubricant leakage and block external contaminants. 2RS bearings are lubricated for life; no re-greasing required.
What is the load rating of a 696 2RS bearing? +
The 696 2RS has a dynamic load rating of 1.35kN and a static load rating of 0.53kN. Operating speed reaches 44,000 RPM under optimal conditions. For applications exceeding these limits, contact us for a bearing selection review.
Can I order 696 2RS bearings with different clearance? +
Yes. Standard clearance is CN, but C2 (tighter) and C3 (looser) are available for volume orders. Specify your clearance requirement when requesting a quote.
What is the difference between 696 ZZ and 696 2RS? +
696 ZZ uses metal shields for higher speed capability and moderate dust protection. 696 2RS uses rubber contact seals for superior moisture and dust sealing at the cost of slightly lower maximum speed. Choose 2RS for wet or dusty environments.
