Deep Groove Ball Bearing

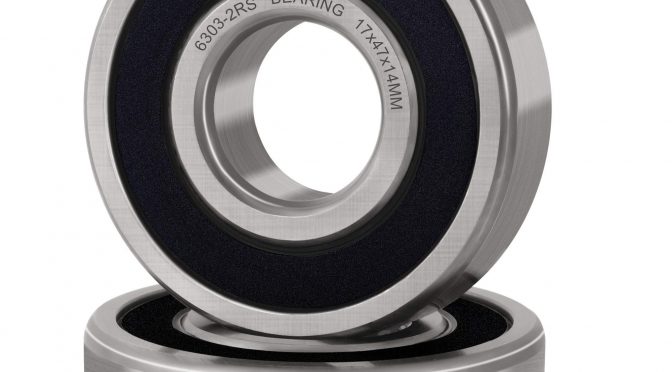

6303-2RS Shielded Ball Bearings

Leave a comment

Technical Specs

Spec 6303-2RS
Item Small ball bearing
Type Shielded
Bore Dia. 17 mm
Outside Dia. 47 mm
Width 14 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 14.3kN
Static Load Capacity (kN) 6.55kN
Max. RPM 11,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

The 6303-2RS ball bearing has two non-contact/contact guards on each side of the ball bearing. If you have special needs for products or want to know more information and get a quotation, you can contact our professional customer service team, and we will recommend the most suitable bearing for you according to your needs.

6303-2RS Shielded Ball Bearings - Yuanhe
Deep Groove Ball Bearing

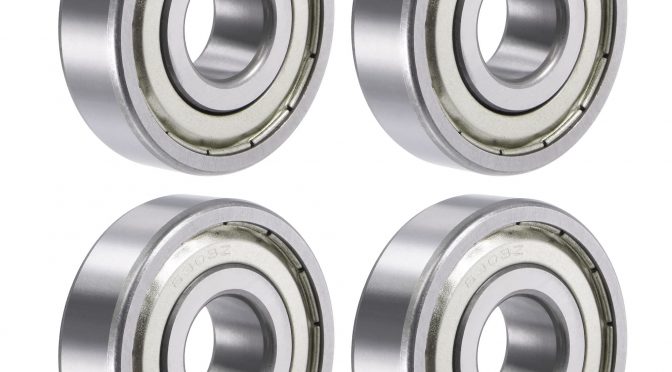

6303-ZZ Shielded Ball Bearings

Leave a comment

Technical Specs

Spec 6303-ZZ
Item Small ball bearing
Type Shielded
Bore Dia. 17 mm
Outside Dia. 47 mm
Width 14 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 14.3kN
Static Load Capacity (kN) 6.55kN
Max. RPM 11,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material Mild steel ( SPCC)
Lubrication Grease

6303-ZZ ball bearing has two non-contacting guards on each side of the ball bearing. If you have special needs for products that need to be customized or want to know more information and get a quote, you can contact our professional customer service team, we will communicate with you and choose the best solution.

6303-2Z Shielded Ball Bearings - Yuanhe
Deep Groove Ball Bearing

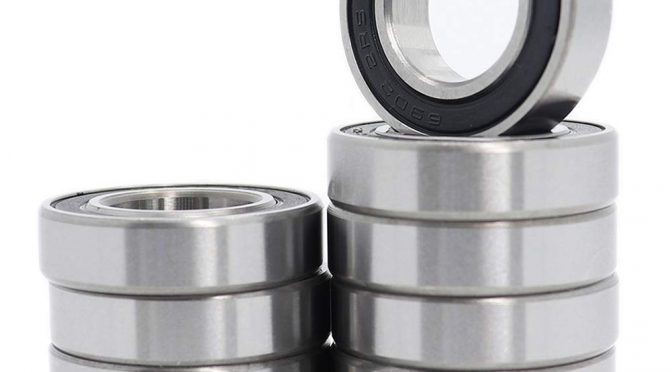

6902-2RS Shielded Ball Bearings

Leave a comment

Technical Specs

Spec 6902-2RS
Item Small ball bearing
Type Shielded
Bore Dia. 30 mm
Outside Dia. 47 mm
Width 9 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 7.28kN
Static Load Capacity (kN) 4.55kN
Max. RPM 8500RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

The 6902-2RS ball bearing has two non-contact/contact guards on each side of the ball bearing. If you have special needs for products or want to know more information and get a quotation, you can contact us, and we will recommend the most suitable solution for you according to your needs.

6902-2RS Shielded Ball Bearings - Yuanhe
Deep Groove Ball Bearing

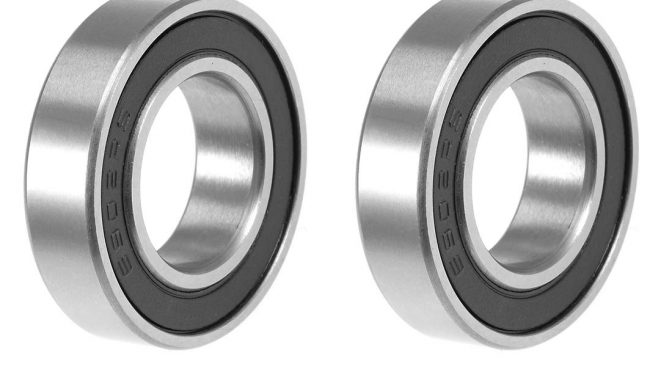

6902-ZZ Shielded Ball Bearings

Leave a comment

Technical Specs

Spec 6902-ZZ
Item Small ball bearing
Type Shielded
Bore Dia. 15 mm
Outside Dia. 28 mm
Width 7 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 4.36kN
Static Load Capacity (kN) 2.44kN
Max. RPM 28,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material Mild steel ( SPCC)
Lubrication Grease

The 6902-ZZ ball bearing has two non-contact guards on each side of the ball bearing. If you have special needs for products or want to know more information and get a quotation, you can contact our professional customer service team, and we will recommend the most suitable bearing for you according to your needs.

6902-2Z Shielded Ball Bearings - Yuanhe
Deep Groove Ball Bearing

6906-2RS Shielded Ball Bearings

Leave a comment

Technical Specs

Spec 6906-2RS
Item Small ball bearing
Type Shielded
Bore Dia. 30 mm
Outside Dia. 47 mm
Width 9 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 7.28kN
Static Load Capacity (kN) 4.55kN
Max. RPM 8,500 RPM
Temp. Range (℃) -40~120℃
Material Nitrile rubber + mild steel (NBR + SPCC)
Shield Material Steel
Lubrication Grease

The 6906-2RS ball bearing has two non-contact/contact guards on each side of the ball bearing. If you have special needs for products or want to know more information and get a quotation, you can contact our professional customer service team, and we will recommend the most suitable bearing for you according to your needs.

6906-2RS Shielded Ball Bearings - Yuanhe
Deep Groove Ball Bearing

6906-ZZ Shielded Ball Bearings

Leave a comment

Technical Specs

Spec 6906-ZZ
Item Small ball bearing
Type Shielded
Bore Dia. 30 mm
Outside Dia. 47 mm
Width 9 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 7.28kN
Static Load Capacity (kN) 4.55kN
Max. RPM 8,500 RPM
Temp. Range (℃) -40~120℃
Material Mild steel (SPCC)
Shield Material Steel
Lubrication Grease

6906-ZZ ball bearing has two non-contact guards on each side of the ball bearing. The shroud sits on the outer ring and does not touch the inner ring. Great for very high speeds. If you have special needs for products or want to know more information and get a quotation, you can contact our professional customer service team, and we will recommend the most suitable bearing for you according to your needs.

6906-2Z Shielded Ball Bearings - Yuanhe
Deep Groove Ball Bearing

6907-2RS Shielded Ball Bearings

Leave a comment

Technical Specs

Spec 6907-2RS
Item Small ball bearing
Type Shielded
Bore Dia. 35 mm
Outside Dia. 55 mm
Width 10 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 10.8kN
Static Load Capacity (kN) 7.8kN
Max. RPM 7,500 RPM
Temp. Range (℃) -40~120℃
Material Nitrile rubber + mild steel (NBR + SPCC)
Shield Material Steel
Lubrication Grease

6907-2RS ball bearing has two non-contact/contact guards on each side of the ball bearing. If you have special needs for products or want to know more information and get a quotation, you can contact our professional customer service team, and we will recommend the most suitable bearing for you according to your needs.

Shielded Ball Bearings 6907-2RS - Yuanhe
Deep Groove Ball Bearing

6907-ZZ Shielded Ball Bearings

Leave a comment

Technical Specs

Spec 6907-ZZ
Item Small ball bearing
Type Shielded
Bore Dia. 35 mm
Outside Dia. 55 mm
Width 10 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 10.8kN
Static Load Capacity (kN) 7.8kN
Max. RPM 7,500 RPM
Temp. Range (℃) -40~120℃
Material Mild steel (SPCC)
Shield Material Steel
Lubrication Grease

6907-ZZ ball bearing has two non-contact guards on each side of the ball bearing. The shroud sits on the outer ring and does not touch the inner ring. Great for very high speeds. If you have special needs for products or want to know more information and get a quotation, you can contact our professional customer service team, and we will recommend the most suitable bearing for you according to your needs.

Shielded Ball Bearings 6907-2Z - Yuanhe
