Monthly Archives: June 2022

Deep Groove Ball Bearing

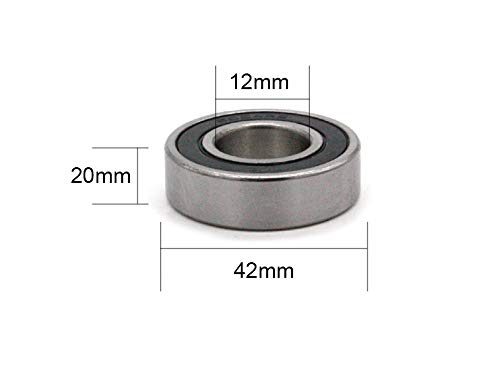

6004 2RS Single Row Deep Groove Ball Bearings

Leave a comment

Part Number 6004 2RS

Deep groove ball bearing drawing
Model 6004 2RS
Item Small ball bearing
Type Shielded
Bore Dia (d). 20 mm
Outside Dia (D). 42 mm
Width (B) 12 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 9.95kN
Static Load Capacity (kN) 5.00kN
Max. RPM 19,000RPM
Temp. Range (℃) -40~120℃
Material steel
Shield Material (NBR+SPCC) Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

6004 2RS single row ball bearings have two non-contact or contact rubber seals on each side of the bearing. If you have specific requirements for the 6004 ball bearings, you can contact us, and our engineers will help you choose the most suitable bearing model for your application. Our team has a wealth of experience in choosing the right bearing for each customer’s unique needs, and we are always happy to help.

Other types of ball bearings are also available: 6001 2RS, 6004 ZZ, 6000 ZZ, 6000 2RS. If you’re interested in our procucts, please feel free to contact us.

Deep Groove Ball Bearing

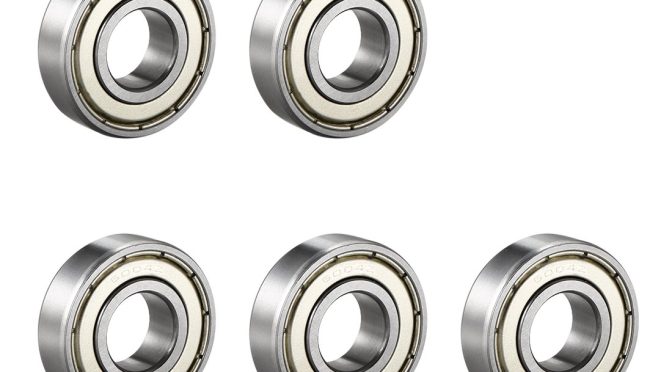

6004-ZZ Shielded Ball Bearings

Leave a comment

Technical Specs

Model 6004-ZZ
Item Small ball bearing
Type Shielded
Bore Dia. 20 mm
Outside Dia. 42 mm
Width 12 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 9.95kN
Static Load Capacity (kN) 5.00kN
Max. RPM 19,000RPM
Temp. Range (℃) -40~120℃
Material steel
Shield Material (SPCC) Mild steel ( SPCC)
Lubrication Grease

6004-ZZ deep groove ball bearings have two non-contact metal guards on each side of the bearing. If you need a 6004 ball bearing with only one guard or no guard or to get a quote for a 6004-ZZ bearing, please contact our customer support team and we will be happy to assist you!

Deep Groove Ball Bearing

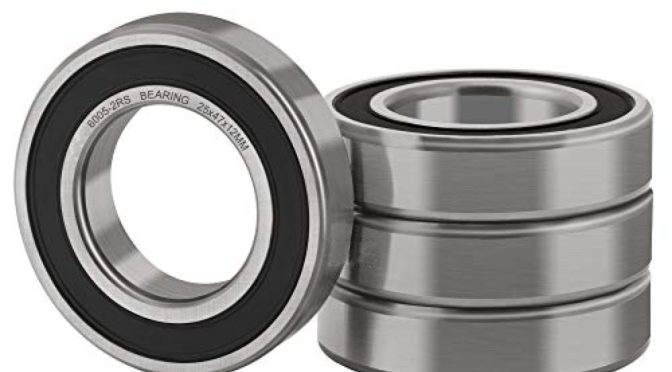

6005-2RS Shielded Ball Bearings

Leave a comment

Technical Specs

Model 6005-2RS
Item Small ball bearing
Type Shielded
Bore Dia. 25 mm
Outside Dia. 47 mm
Width 12 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 11.9kN
Static Load Capacity (kN) 6.55kN
Max. RPM 18,000RPM
Temp. Range (℃) -40~120℃
Material steel
Shield Material (NBR+SPCC) Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

6005-2RS deep groove ball bearings have two non-contact/contact rubber boots on each side of the bearing. If you have special requirements for 6005 ball bearings, you can contact us, and our engineers will help you choose the most suitable bearing model for your application.

Deep Groove Ball Bearing

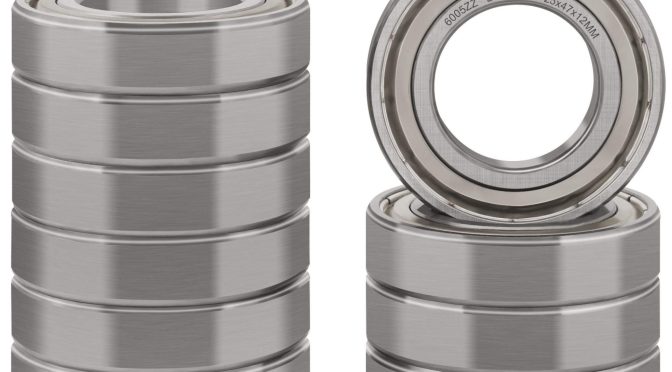

6005-ZZ Shielded Ball Bearings

Leave a comment

Technical Specs

Model 6005-ZZ
Item Small ball bearing
Type Shielded
Bore Dia. 25 mm
Outside Dia. 47 mm
Width 12 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 11.9kN
Static Load Capacity (kN) 6.55kN
Max. RPM 18,000RPM
Temp. Range (℃) -40~120℃
Material steel
Shield Material (SPCC) Mild steel ( SPCC)
Lubrication Grease

6005-ZZ deep groove ball bearings have two non-contact metal guards on each side of the bearing. If you need a 6005 ball bearing with only one guard or no guard or to get a quote for a 6005-ZZ bearing, please contact our customer support team and we will be happy to assist you!

Deep Groove Ball Bearing

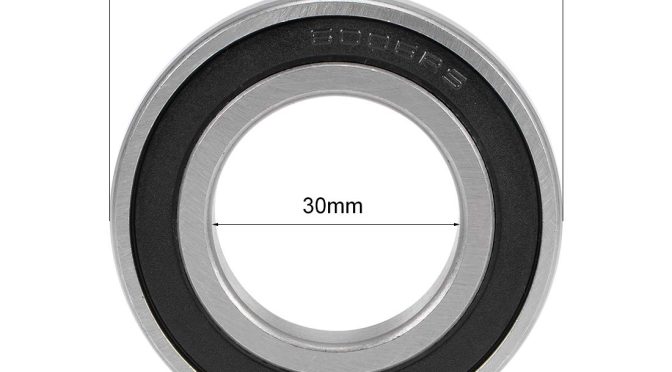

6006-2RS Shielded Ball Bearings

Leave a comment

Technical Specs

Model 6006-2RS
Item Small ball bearing
Type Shielded
Bore Dia. 30 mm
Outside Dia. 55 mm
Width 13 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 13.8kN
Static Load Capacity (kN) 8.30kN
Max. RPM 15,000RPM
Temp. Range (℃) -40~120℃
Material steel
Shield Material (NBR+SPCC) Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

6006-2RS deep groove ball bearings have two non-contact/contact rubber boots on each side of the bearing. If you have special requirements for 6006 ball bearings, you can contact us, and our engineers will help you choose the most suitable bearing model for your application.

Deep Groove Ball Bearing

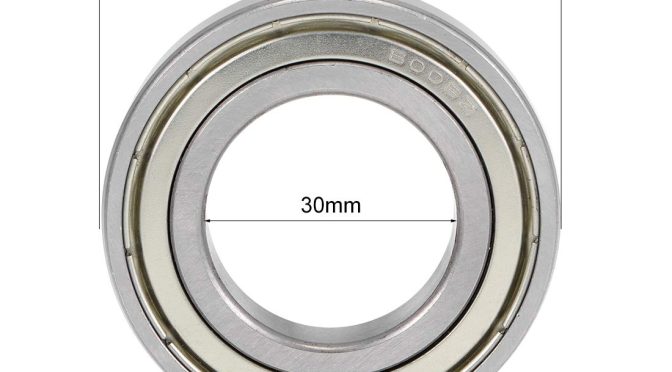

6006-ZZ Shielded Ball Bearings

Leave a comment

Technical Specs

Model 6006-ZZ
Item Small ball bearing
Type Shielded
Bore Dia. 30 mm
Outside Dia. 55 mm
Width 13 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 13.8kN
Static Load Capacity (kN) 8.30kN
Max. RPM 15,000RPM
Temp. Range (℃) -40~120℃
Material steel
Shield Material (SPCC) Mild steel ( SPCC)
Lubrication Grease

6006-ZZ deep groove ball bearings have two non-contact metal guards on each side of the bearing. If you need a 6006 ball bearing with only one guard or no guard or to get a quote for a 6006-ZZ bearing, please contact our customer support team and we will be happy to assist you!

Deep Groove Ball Bearing

6007-2RS Shielded Ball Bearings

Leave a comment

Technical Specs

Model 6007-2RS
Item Small ball bearing
Type Shielded
Bore Dia. 35 mm
Outside Dia. 62 mm
Width 14 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 16.8kN
Static Load Capacity (kN) 10.2kN
Max. RPM 14,000RPM
Temp. Range (℃) -40~120℃
Material steel
Shield Material (NBR+SPCC) Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

6007-2RS deep groove ball bearings have two non-contact/contact rubber boots on each side of the bearing. If you have special requirements for 6007 ball bearings, you can contact us, and our engineers will help you choose the most suitable bearing model for your application.

Deep Groove Ball Bearing

6007-ZZ Shielded Ball Bearings

Leave a comment

Technical Specs

Model 6007-ZZ
Item Small ball bearing
Type Shielded
Bore Dia. 35 mm
Outside Dia. 62 mm
Width 14 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 16.8kN
Static Load Capacity (kN) 10.2kN
Max. RPM 14,000RPM
Temp. Range (℃) -40~120℃
Material steel
Shield Material (SPCC) Mild steel ( SPCC)
Lubrication Grease

6007-ZZ deep groove ball bearings have two non-contact metal guards on each side of the bearing. If you need a 6007 ball bearing with only one guard or no guard or to get a quote for a 6007-ZZ bearing, please contact our customer support team and we will be happy to assist you!

Deep Groove Ball Bearing

6203 2RS C3 Sealed Ball Bearings

Leave a comment

Part Number 6203 2RS

Deep groove ball bearing drawing
Model 6203 2RS
Item Small ball bearing
Type Shielded
Bore Dia (d). 17 mm
Outside Dia (D). 40 mm
Width (B) 12 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 9.95kN
Static Load Capacity (kN) 4.75kN
Max. RPM 20,000 RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material (NBR+SPCC) Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

6203 2RS C3 sealed ball bearing has two non-contact or contact rubber seal on each side of the ball bearing. The function of the shield is to protect the bearing from the possible introduction of environmental debris during operation, which can reduce the speed and service life of the ball bearing.

If you want to know more information or get a quotation, you can contact our professional customer service team, and we will recommend the most suitable bearing for you according to your needs.

Other types of ball bearings are also available: 6201 ZZ, 6202 2RS, 6203 ZZ, 6204 ZZ, 6205 2RS. If you’re interested in our procucts, please feel free to contact us.

Deep Groove Ball Bearing

6203 ZZ Z2 Metal Shield Ball Bearings

Leave a comment

Part Number 6203 ZZ

Deep groove ball bearing drawing
Model 6203 ZZ
Item Small ball bearing
Type Shielded
Bore Dia (d). 17 mm
Outside Dia (D). 40 mm
Width (B) 12 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 9.95kN
Static Load Capacity (kN) 4.75kN
Max. RPM 20,000 RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material (SPCC) Mild steel ( SPCC)
Lubrication Grease

6203 ZZ Z2 metal shield ball bearing is the most widely used bearing type. They feature low friction and are optimized for low noise and vibration, allowing for high rotation speed. They are easy to install and require less maintenance than many other bearing types.

If you need more information or a quote, please feel free to contact our professional customer service team.

Other types of ball bearings are also available: 6201 ZZ, 6202 2RS, 6204 ZZ, 6205 2RS. If you’re interested in our procucts, please feel free to contact us.
