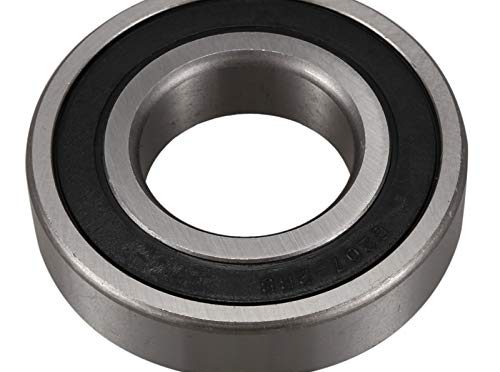

6207-2RS Shielded Ball Bearings

Technical Specs

Spec 6207-2RS
Item Small ball bearing
Type Shielded
Bore Dia. 35 mm
Outside Dia. 72 mm
Width 17 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 27.0kN
Static Load Capacity (kN) 15.3kN
Max. RPM 10,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material (NBR+SPCC) Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

6207-2RS ball bearings are widely used in industrial and automation applications. They are designed to reduce rotational friction and support loads. The load is evenly applied to the balls, and as the inner bearing race rotates, the balls rotate with it. For more information or to get a quote for the 6207-2RS bearing, please contact our customer support team and we will be happy to assist you!

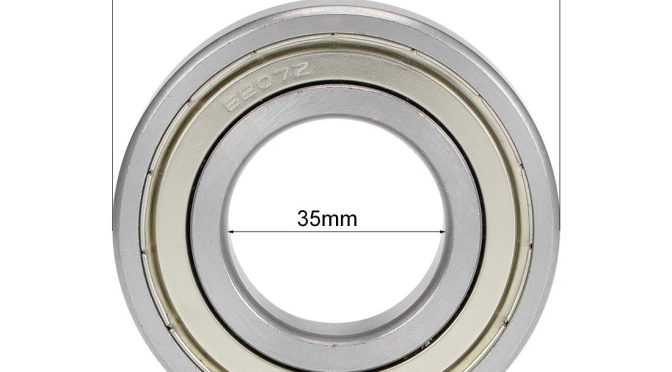

6207-ZZ Shielded Ball Bearings

Technical Specs

Spec 6207-ZZ
Item Small ball bearing
Type Shielded
Bore Dia. 35 mm
Outside Dia. 72 mm
Width 17 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 27.0kN
Static Load Capacity (kN) 15.3kN
Max. RPM 10,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material (SPCC) Mild steel ( SPCC)
Lubrication Grease

6207-ZZ deep groove ball bearing is a single row bearing that can withstand radial loads, and is constructed of chrome steel for superior quality and durability. It is pre-lubricated and sealed to keep lubricants out and keep out contaminants, dirt, and debris. If you need more quotations for rolling bearings, you can contact our professional customer support team, we will be happy to help you efficiently!

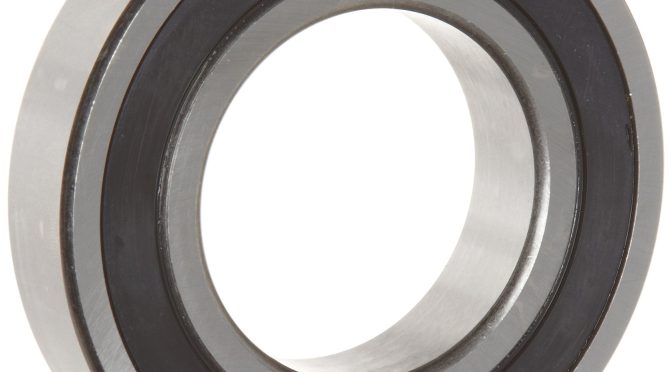

6208-2RS Shielded Ball Bearings

Technical Specs

Spec 6208-2RS
Item Small ball bearing
Type Shielded
Bore Dia. 40 mm
Outside Dia. 80 mm
Width 18 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 32.5kN
Static Load Capacity (kN) 19.0kN
Max. RPM 9,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material (NBR+SPCC) Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

6208-2RS ball bearings are widely used in industrial and automation applications. They are designed to reduce rotational friction and support loads. The load is evenly applied to the balls, and as the inner bearing race rotates, the balls rotate with it. For more information or to get a quote for the 6208-2RS bearing, please contact our customer support team and we will be happy to assist you!

6208-ZZ Shielded Ball Bearings

Technical Specs

Spec 6208-ZZ
Item Small ball bearing
Type Shielded
Bore Dia. 40 mm
Outside Dia. 80 mm
Width 18 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 32.5kN
Static Load Capacity (kN) 19.0kN
Max. RPM 9,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material (SPCC) Mild steel ( SPCC)
Lubrication Grease

6208-ZZ deep groove ball bearing is a single row bearing that can withstand radial loads and is constructed of chrome steel for superior quality and durability. It is pre-lubricated and sealed to keep lubricants out and keep out contaminants, dirt, and debris. If you need more quotations for rolling bearings, you can contact our professional customer support team, we will be happy to help you efficiently!

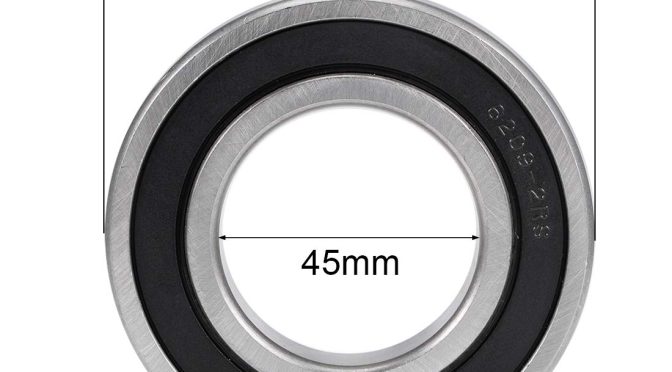

6209-2RS Shielded Ball Bearings

Technical Specs

Spec 6209-2RS
Item Small ball bearing
Type Shielded
Bore Dia. 45 mm
Outside Dia. 85 mm
Width 19 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 35.1kN
Static Load Capacity (kN) 25.6kN
Max. RPM 8,300RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material (NBR+SPCC) Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

6209-2RS ball bearings are widely used in industrial and automation applications. They are designed to reduce rotational friction and support loads. The load is evenly applied to the balls, and as the inner bearing race rotates, the balls rotate with it. For more information or to get a quote for the 6209-2RS bearing, please contact our customer support team and we will be happy to assist you!

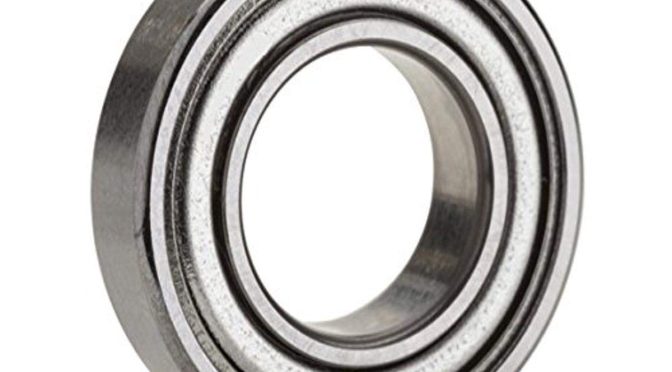

6209-ZZ Shielded Ball Bearings

Technical Specs

Spec 6209-ZZ
Item Small ball bearing
Type Shielded
Bore Dia. 45 mm
Outside Dia. 85 mm
Width 19 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 35.1kN
Static Load Capacity (kN) 25.6kN
Max. RPM 8,300RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material (SPCC) Mild steel ( SPCC)
Lubrication Grease

6209-ZZ deep groove ball bearing is a single row bearing that can withstand radial loads and is constructed of chrome steel for superior quality and durability. It is pre-lubricated and sealed to keep lubricants out and keep out contaminants, dirt, and debris. If you need more quotations for rolling bearings, you can contact our professional customer support team, we will be happy to help you efficiently!

6301-2RS Shielded Ball Bearings

Technical Specs

Spec 6301-2RS
Item Small ball bearing
Type Shielded
Bore Dia. 12 mm
Outside Dia. 37 mm
Width 12 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 10.1kN
Static Load Capacity (kN) 4.15kN
Max. RPM 14,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material Nitrile rubber + mild steel (NBR + SPCC)
Lubrication Grease

6301-2RS is a commonly used ball-sealed bearing with two non-contacting/contacting guards on each side of the ball bearing. If you have special needs for products or want to know more information and get a quotation, you can contact our professional customer service team, and we will recommend the most suitable bearing for you according to your needs.

Shielded Ball Bearings 6301-2RS drawing - Yuanhe

6301-ZZ Shielded Ball Bearings

Technical Specs

Spec 6301-ZZ
Item Small ball bearing
Type Shielded
Bore Dia. 12 mm
Outside Dia. 37 mm
Width 12 mm
ABEC Tolerance 3
Dynamic Load Capacity (kN) 10.1kN
Static Load Capacity (kN) 4.15kN
Max. RPM 14,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material Mild steel ( SPCC)
Lubrication Grease

6301-ZZ ball bearing has two non-contacting metal guards on each side of the ball bearing. If you have special needs for products that need to be customized or want to know more information and get a quote, you can contact our professional customer service team, we will communicate with you and choose the best solution.

Shielded Ball Bearings 6301-2Z drawing - Yuanhe
