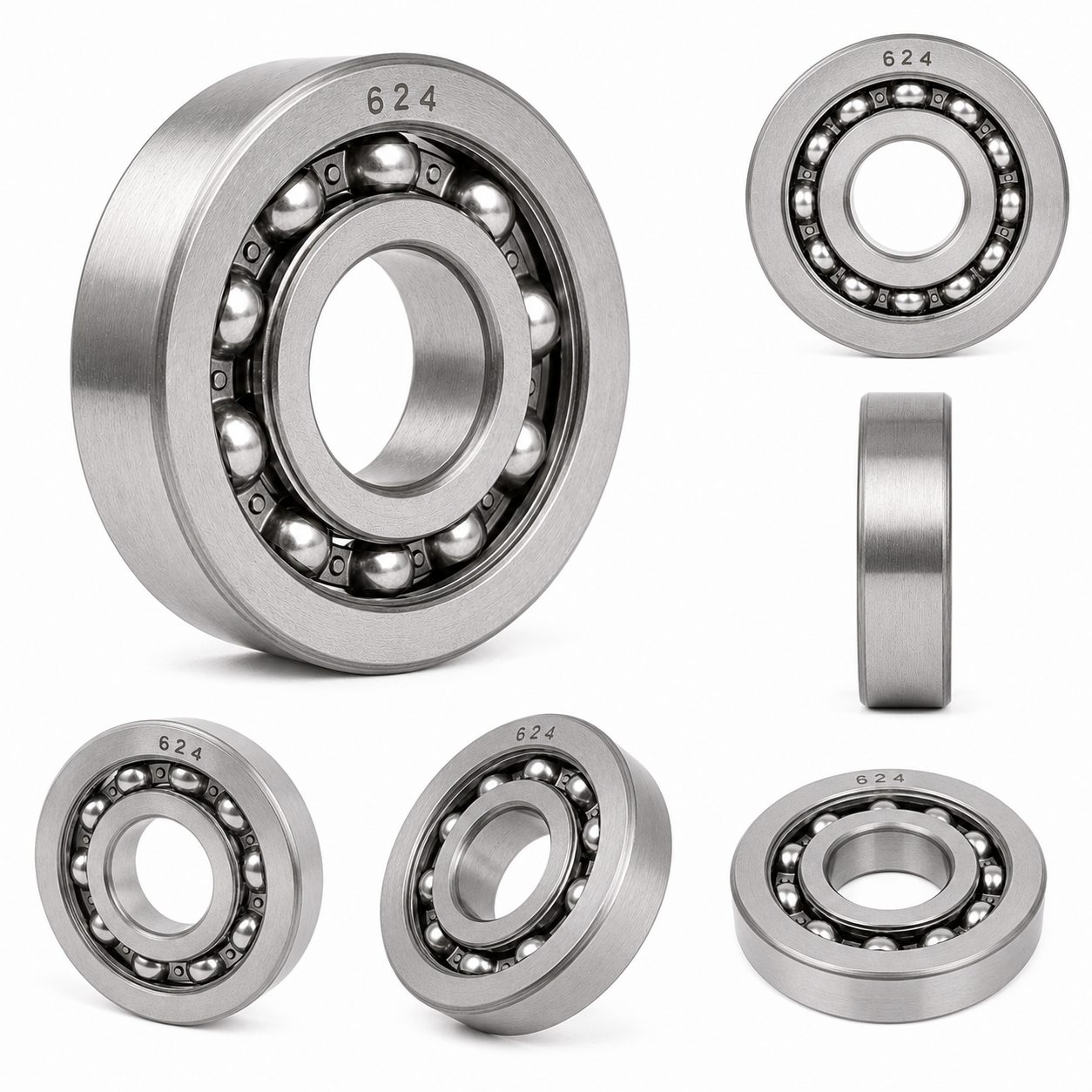

624 Deep Groove Ball Bearing 4x13x5mm

When a 4mm shaft must fit within a 13mm OD housing, the 624 bearing sits between the compact 623 bearing (3x10x4mm) and the larger 625 bearing (5x16x5mm). At 4x13x5mm, it trades 3mm OD for a 74 percent load capacity increase over the 623 bearing while keeping the envelope small enough for hobby servos and compact power tools. This page covers the 624 bearing specifications, sealing options, performance trade-offs, and the design decisions that justify choosing it over step-down or step-up alternatives.

Key Specifications

Configurations: Open, ZZ (metal shields), or 2RS (rubber contact seals).
Dynamic Load: 0.94 kN. Static Load: 0.31 kN. Speed: 45,000 RPM (open/ZZ), 36,000 RPM (2RS).
Load Direction: Radial plus limited bidirectional axial, up to 10-20 percent of radial rating.
Temperature: -20 degrees Celsius to 120 degrees Celsius standard; to 150 degrees Celsius with high-temperature grease.
Precision: ABEC-1 standard; ABEC-3 available for tighter runout control.

Inquiry Now Download PDF

For any inquiries, please contact with our Supporting Team at sales@yuanhecd.com.

624 Deep Groove Ball Bearing 4x13x5mm

Model	624
Bore (d)	4 mm
OD (D)	13 mm
Width (B)	5 mm
Type	Open / Shielded / Sealed
ABEC	ABEC-1 / ABEC-3
Dynamic Load	0.94 kN
Static Load	0.31 kN
Max Speed	45,000 RPM (open/ZZ)

The 624 bearing is a miniature deep groove ball bearing with 4mm bore, 13mm OD, and 5mm width. Available in open, ZZ (metal shields), and 2RS (rubber seals) configurations. At 0.94 kN dynamic load and 45,000 RPM in open/ZZ configuration, it sits between the compact 623 bearing and the larger 625 bearing in the miniature series. The 2RS sealed variant derates to approximately 0.70 kN and 36,000 RPM for contaminated environments.

Bore x OD x Width

4 x 13 x 5 mm

Dynamic Load Cr

0.94 kN

Static Load Cor

0.31 kN

Max Speed

45,000 RPM

Sealing

Open / ZZ / 2RS

Precision

ABEC-1 / ABEC-3

Shielding and Lubrication

Three sealing configurations serve different environments. Open 624 bearings reach 45,000 RPM with no seal friction, requiring external lubrication and a clean housing. ZZ bearings use non-contact SPCC steel shields that retain factory grease while adding zero drag, preserving the full speed rating. 2RS bearings use nitrile rubber (NBR) lip seals that press against the inner ring, blocking moisture and fine dust at the cost of friction, lowering the speed ceiling to approximately 36,000 RPM.

At 5mm width, the 624 bearing carries a proportionally larger grease reservoir than narrower miniature bearings. The 2RS configuration extends service intervals in dusty or wet environments at a 9,000 RPM speed penalty. For clean assembly environments and high-speed applications, ZZ or open configurations are the correct choice.

Performance

The 624 bearing sits between the 623 bearing (3x10x4mm, 0.54 kN) and the 625 bearing (5x16x5mm, 1.42 kN) in the miniature series. It delivers 0.94 kN dynamic and 0.31 kN static load in open or ZZ configurations, a 74 percent increase over the 623 bearing. At 45,000 RPM, speed is slightly lower than the 623 bearing (50,000 RPM) due to the larger OD increasing centrifugal loads. For 2RS sealed variants, dynamic load derates to approximately 0.70 kN with speed capped at 36,000 RPM.

OEM and Customization

Yuanhe manufactures 624 bearings to customer specifications. Custom internal clearance grades C2, CN, and C3 are available for volume orders. Low-noise grease fills (V2 or V3 vibration class) support quiet-operation requirements. 440C stainless steel rings and balls provide corrosion resistance for food processing and marine environments. Standard OEM lead time is 7 to 15 days. Send bearing dimensions or part number requirements to contact Yuanhe for a quote.
