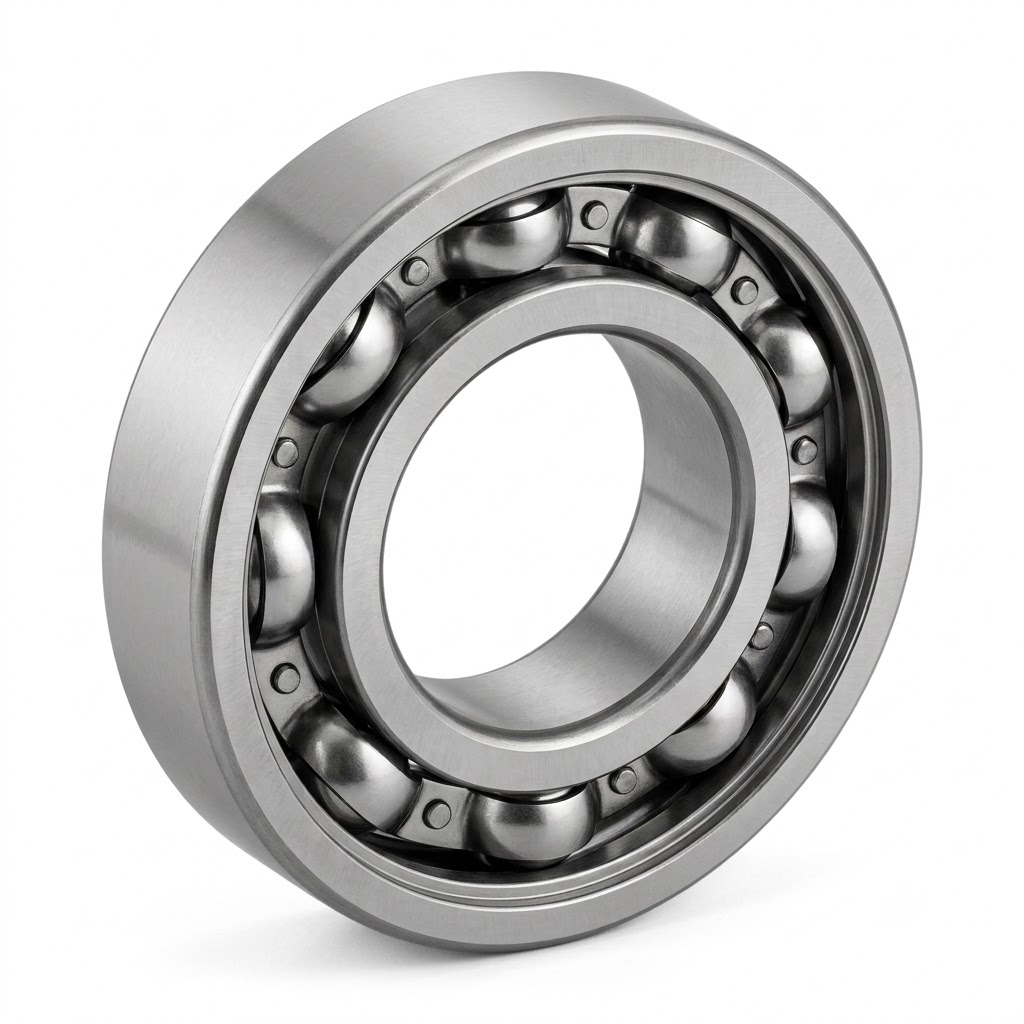

6004 Deep Groove Ball Bearing 20x42x12mm
The 6004 bearing is the largest bore deep groove ball bearing in the ISO 600 extra-light series: 20mm bore, 42mm OD, 12mm width, 9.36 kN dynamic load at 18,000 RPM. Weighing 69 grams with a radial cross-section of 11mm, it bridges the gap between the compact 60xx family and the heavier 62xx series. The 20mm bore fits standard motor shafts while the 42mm OD saves 5mm of radial space versus a 6204 bearing. Open, ZZ, and 2RS configurations cover clean high-speed, dust-protected, and washdown environments.
Key Specifications
Sealing: Open, ZZ (metal shields), or 2RS (rubber seals). ZZ reaches 18,000 RPM with non-contact labyrinth protection. 2RS rated to 13,000 RPM with positive contact sealing against moisture and fine dust.
Speed and Load: 22,000 RPM (open) with 9.36 kN dynamic and 5.10 kN static load. ZZ configuration rated to 18,000 RPM with grease. 2RS configuration rated to 13,000 RPM due to seal friction at the larger diameter.
Radial Fit: 20mm bore, 42mm OD, 12mm width. 11mm radial cross-section; 69 grams. 9 balls of 6.35mm (1/4 inch) diameter, pressed steel two-piece riveted cage. The 20mm bore is the largest standard size in the extra-light 60xx series and steps up to common motor shaft diameters.
Temperature Range: -20C to 120C with standard polyurea grease. 150C peak available with high-temperature fluorinated lubricant.
Precision: Standard ABEC-1. ABEC-3 available for tighter bore tolerance (+0/-0.010mm) and reduced radial runout.
For any inquiries, please contact with our Supporting Team at sales@yuanhecd.com.
| Model | 6004 |
| Bore (d) | 20 mm |
| OD (D) | 42 mm |
| Width (B) | 12 mm |
| Weight | 69 g |
| ABEC | ABEC-1 / ABEC-3 |
| Dynamic Load | 9.36 kN |
| Static Load | 5.10 kN |
| Max Speed | 18,000 RPM |
6004 bearing is the largest extra-light series deep groove ball bearing with a 20mm bore, 42mm OD, and 12mm width. GCr15 chrome steel, ABEC-3 precision, 18,000 RPM grease speed. Nine 6.35mm balls deliver 9.36kN dynamic capacity. Available in Open, ZZ bearing, and 2RS bearing configurations.
Bore x OD x Width
20 x 42 x 12 mm
Dynamic Load Cr
9.36 kN
Static Load Cor
5.10 kN
Max Speed
18,000 RPM
Sealing
Open / ZZ / 2RS
Precision
ABEC-1 / ABEC-3
Shielding and Lubrication
The 6004 bearing ships in three sealing configurations. Open (no suffix) suits oil-bath and oil-mist lubricated housings where speed is the priority; it reaches 22,000 RPM with oil and 18,000 RPM with grease. ZZ bearing uses double SPCC steel shields pressed into the outer ring. These non-contact labyrinths block coarse debris with zero seal drag. 2RS bearing uses NBR rubber contact seals riding on the inner ring shoulder for positive protection against moisture, fine dust, and light liquid splash at 13,000 RPM.
At 12mm width and 42mm OD, the 6004 bearing has a radial cross-section of 11mm. The seals do not compromise the load path. Factory fill is lithium soap grease. Polyurea, fluorinated high-temperature, and food-grade NSF H1 greases are available for volume orders.
Performance
The 6004 bearing carries 9.36 kN dynamic and 5.10 kN static load at 18,000 RPM in ZZ bearing configuration. Part of the deep groove ball bearing family, it is the largest and highest capacity in the 60xx extra-light series. GCr15 chrome steel rings hardened to 60-64 HRC. Nine balls of 6.35mm diameter enable the jump from 6.00 kN in the 6003 bearing to 9.36 kN.
Compared to the 6204 bearing (20x47x14mm, 12.8 kN dynamic), the 6004 bearing gives up 3.44 kN but saves 5mm in OD and 2mm in width, weighing 69g versus 106g. Compared to the 6003 bearing (17x35x10mm, 6.00 kN), the 6004 bearing adds 3.36 kN capacity and 3mm bore diameter. L10 life at rated load is approximately 5.5 hours; at half load, L10 exceeds 8,000 hours with clean lubrication and proper mounting.
OEM and Customization
Through custom bearing manufacturing, Yuanhe produces the 6004 bearing to your specifications. Common OEM requests include C2 or C3 clearance grades, polyurea low-noise grease for electric motors, fluorinated grease for operation above 100C, NSF H1 food-grade grease, black oxide or zinc-nickel surface treatment, FKM seals, 440C stainless steel rings and balls, and private labeling with laser marking. Standard lead time is 7 to 15 days with batch-level reports.
Applications
Small to medium electric motors up to 2 HP
HVAC condenser and evaporator fan units
Power tools, bench grinders, drill presses
Pumps, compressors, conveyor pulleys
Frequently Asked Questions
What is the difference between 6004 bearing and 6204 bearing? +
Both have a 20mm bore. The 6004 bearing has a 42mm OD, 12mm width, and 9.36 kN dynamic. The 6204 bearing steps up to 47mm OD, 14mm width, and 12.8 kN dynamic. The 6004 bearing saves 5mm in OD and 2mm in width, weighing 69g versus 106g. Choose 6004 bearing when housing bore is constrained; choose 6204 bearing when full load capacity is required.
How does the 6004 bearing compare to the 6003 bearing? +
The 6004 bearing has a 20mm bore versus 17mm for 6003. OD increases from 35mm to 42mm. Width from 10mm to 12mm. Dynamic load jumps from 6.00 kN to 9.36 kN, a 56 percent increase. Ball size from 5.556mm to 6.35mm. If your shaft is 17mm use 6003 bearing. If 20mm, 6004 bearing is the largest 60xx option.
Can the 6004 bearing handle radial and axial loads simultaneously? +
Yes. As a deep groove ball bearing, the 6004 bearing handles combined loading with axial capacity at roughly 25 to 30 percent of the radial dynamic rating. For combined loads, calculate the equivalent dynamic load per ISO 281. The deep groove geometry supports axial thrust in both directions.
What grease options are available for the 6004 2RS bearing? +
Standard fill is polyurea-thickened mineral grease, 100 cSt at 40C, rated -20C to 120C. Custom options include filtered low-noise polyurea for motor applications, fluorinated high-temperature grease to 150C, and food-grade NSF H1 grease. For application-specific recommendations, contact our engineering team.
