Needle Roller Bearing

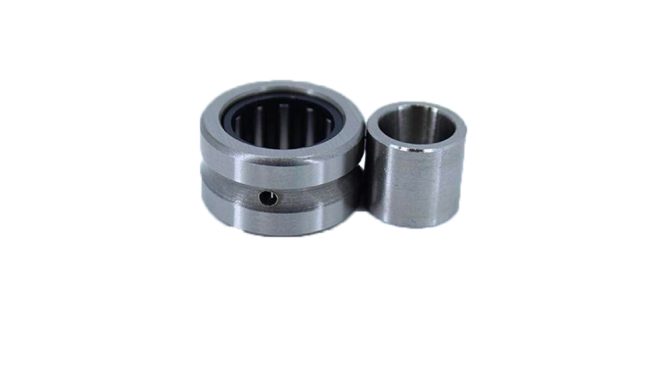

NKI35/20 High Quality Needle Roller Bearing

Leave a comment

Part Number NKI35/20

NA4900

Technical Specs

Spec NKI35/20
Item Needle Roller Bearings
Bore Dia. 35 mm
Outside Dia. 50 mm
Width 20 mm
Dynamic Load Capacity (kN) 26.4kN
Static Load Capacity (kN) 51kN
Max. RPM(r/min) 10000

NKI35/20 High Quality Needle Roller Bearings are used in a variety of applications, including automotive and aerospace, where they provide higher load carrying capacity in a smaller space than traditional ball bearings.

Other types of roller bearings are also available: NA6906, NA69/28, NA4905. If you’re interested in our procucts, please feel free to contact us.

Needle Roller Bearing

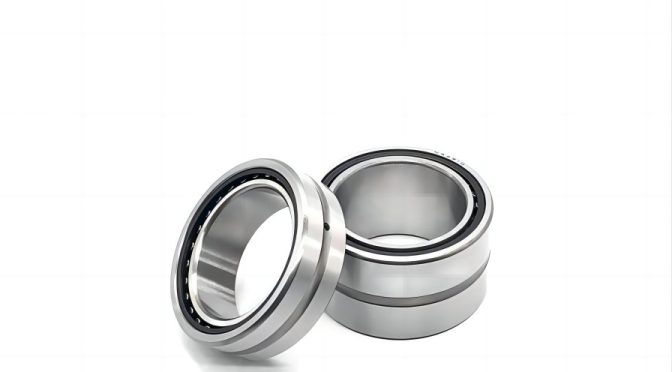

NA6906 Radial Needle Roller Bearing

Leave a comment

Part Number NA6906

NA4900

Technical Specs

Spec NA6906
Item Needle Roller Bearings
Bore Dia. 30 mm
Outside Dia. 47 mm
Width 30mm
Dynamic Load Capacity (kN) 42.9kN
Static Load Capacity (kN) 75kN
Max. RPM(r/min) 11000

NA6906 radial needle roller bearings are typically used in applications requiring high radial loads, such as automotive and industrial machinery. In addition, it has excellent load carrying capacity and can run at high speeds. The bearing is very efficient and requires little maintenance.

Other types of roller bearings are also available: NKI35/20, NA69/28, NA69/22. If you’re interested in our procucts, please feel free to contact us.

Needle Roller Bearing

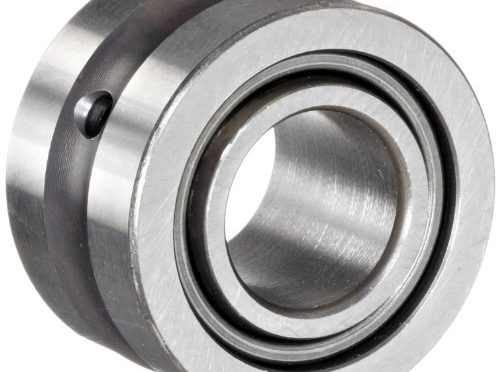

NA69/28 Needle Roller Bearing With Inner Ring

Leave a comment

Part Number NA69/28

NA4900

Technical Specs

Spec NA69/28
Item Needle Roller Bearings
Bore Dia. 28 mm
Outside Dia. 45 mm
Width 30 mm
Dynamic Load Capacity (kN) 39.6kN
Static Load Capacity (kN) 65.5kN
Max. RPM(r/min) 8000

NA69/28 Needle Roller Bearings are used in a variety of products including automobiles, motorcycles and other machinery. It plays a vital role in these products by providing smooth, efficient and long-lasting operation.

Other types of roller bearings are also available: NKI35/20, NA6906, NA69/22. If you’re interested in our procucts, please feel free to contact us.

Needle Roller Bearing

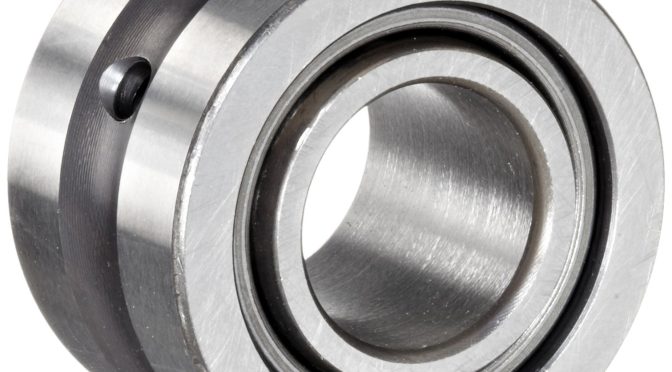

NA69/22 Machined Needle Roller Bearing

Leave a comment

Part Number NA69/22

NA4900

Technical Specs

Spec NA69/22
Item Needle Roller Bearings
Bore Dia. 22 mm
Outside Dia. 39 mm
Width 30 mm
Dynamic Load Capacity (kN) 36.9kN
Static Load Capacity (kN) 57kN
Max. RPM(r/min) 14000

The NA69/22 machined needle roller bearings are made of chrome steel and have machined races. It is suitable for high-speed applications, this type of bearing is often used in machinery and equipment that require precise rotation.

Other types of needle roller bearings are also available: NKI20/16, NA6902, NA4905. If you’re interested in our procucts, please feel free to contact us.

Needle Roller Bearing

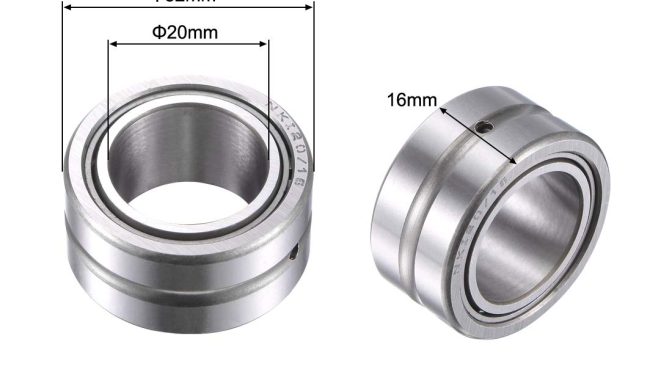

NKI20/16 Needle Non Thrust Roller Bearings

Leave a comment

Part Number NKI20/16

NA4900

Technical Specs

Spec NKI20/16
Item Needle Roller Bearings
Bore Dia. 20 mm
Outside Dia. 32 mm
Width 16 mm
Dynamic Load Capacity (kN) 15.4kN
Static Load Capacity (kN) 24.5kN
Max. RPM(r/min) 16000

The NKI20/16 needle non thrust roller bearings are designed for high load and speed applications. The bearings utilize high quality chromium steel races and rolling elements that provide superior wear resistance and stability.

Other types of roller bearings are also available: NKI35/20, NA6906, NA69/28. If you’re interested in our procucts, please feel free to contact us.

Needle Roller Bearing

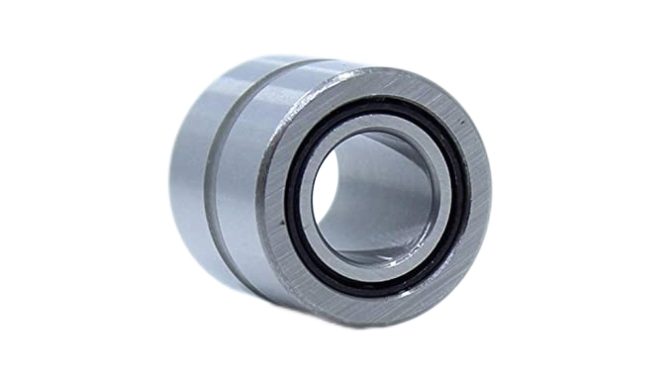

NA6902 Heavy Duty Needle Roller Bearings

Leave a comment

Part Number NA6902

NA6900

Technical Specs

Spec NA6902
Item Needle Roller Bearings
Bore Dia. 15 mm
Outside Dia. 28 mm
Width 23 mm
Dynamic Load Capacity (kN) 17.2kN
Static Load Capacity (kN) 27kN
Max. RPM(r/min) 19000

The NA6902 Heavy Duty Needle Roller Bearings is a classic bearing that has been used in a variety of applications for many years. The bearing has a wide inner ring with two set screws for fastening to the shaft. The bearing has a chrome steel cage and is suitable for high load capacity and high speed applications.

Other types of roller bearings are also available: NA4900, NA4905, NKI20/16. If you’re interested in our procucts, please feel free to contact us.

Needle Roller Bearing

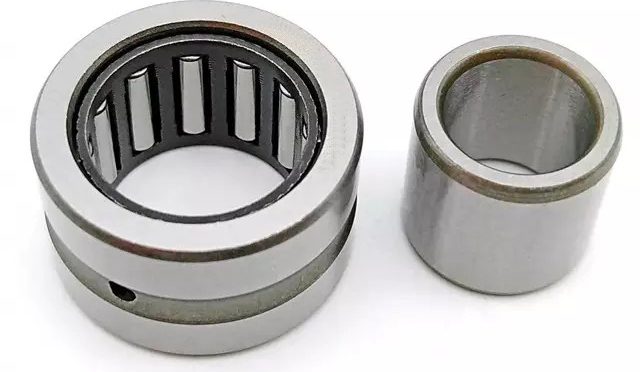

NA4900 Bearing Machined Needle Roller

Leave a comment

Part Number NA4900

NA4900

Technical Specs

Spec NA4900
Item Needle Roller Bearings
Bore Dia. 10 mm
Outside Dia. 22 mm
Width 13 mm
Dynamic Load Capacity (kN) 8.8 kN
Static Load Capacity (kN) 10.4 kN
Max. RPM(r/min) 26000

NA4900 bearing machined needle roller are widely used in automobiles, motorcycles, construction machinery and other fields. It plays a vital role in these applications by reducing friction and ensuring smooth operation.

Other types of ball bearings are also available: NA69/22, NKI20/16, NA6902. If you’re interested in our procucts, please feel free to contact us.

Cylindrical Roller Bearing

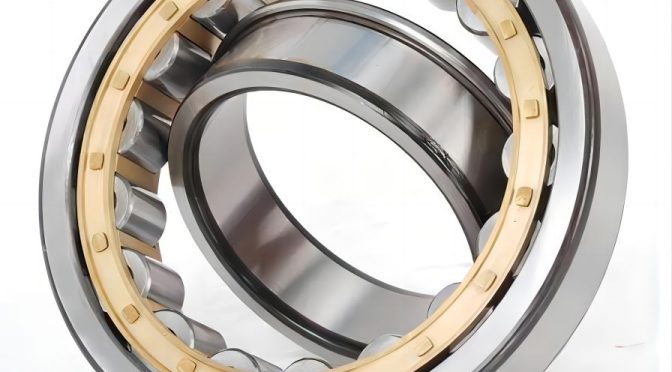

NJ408 Cylindrical Roller Bearing NU Type

Leave a comment

Part Number NJ408

nu

Technical Specs

Spec NJ408
Item Cylindrical Roller Bearing
Type NU series
Bore Dia. 40 mm
Outside Dia. 110 mm
Width 27 mm
Fw(mm) 58
Ew(mm) 92
Dynamic Load Capacity (kN) 100.8kN
Static Load Capacity (kN) 95.4kN
Max. RPM(r/min) 7500
Lubrication Grease/oil

NJ408 cylindrical roller bearing nu type is a type of rolling bearing. It uses cylindrical rollers and raceways are formed in a straight line between the spindle and the outer ring. Therefore, NJ408 cylindrical roller bearing nu type has a high load capacity and can accommodate axial loads in both directions.

Other types of ball bearings are also available: N2208, NJ2207, NU2206. If you’re interested in our procucts, please feel free to contact us.
