The Specific Working Principle and Selection of Deep Groove Ball Bearings in Banknote Counting Machines

Banknote counting machines are critical tools in financial institutions, retail environments, and other businesses where large volumes of cash must be handled quickly and accurately. The core of their performance lies in precise, high-speed movement and reliable operation—qualities that heavily depend on the machine’s internal components. One of the most vital of these components is the deep groove ball bearing. While small in size, these bearings play a disproportionately large role in ensuring the machine’s speed, accuracy, and durability.

In this blog, we’ll explore the specific working principle of deep groove ball bearings as applied to banknote counting machines and how to select the right bearings for this precision-focused application.

What Are Deep Groove Ball Bearings?

Deep groove ball bearings are a type of rolling-element bearing designed to reduce rotational friction and support both radial and axial loads. They are named for the deep raceway grooves in their inner and outer rings that allow them to carry heavier loads and operate at higher speeds than many other bearing types.

These bearings consist of four main parts:

• Inner ring
• Outer ring
• Steel balls (rolling elements)
• Cage (separator for the balls)

In banknote counting machines, deep groove ball bearings are typically used in high-speed rotating shafts, rollers, and precision gears that drive the banknote feeding, stacking, and detection processes.

The Working Principle of Deep Groove Ball Bearings in Banknote Counters

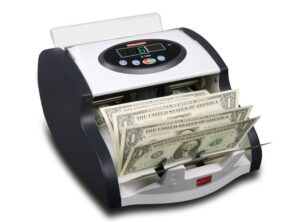

Banknote counting machines operate by feeding individual notes through a set of rollers and detection systems at high speed—often thousands of notes per minute. These rollers must rotate smoothly and precisely to prevent miscounts, jams, or damage to the banknotes.

Here’s how deep groove ball bearings function in this environment:

1. High-Speed Rotation with Minimal Friction

In a banknote counter, rollers and shafts rotate continuously at high speeds. Deep groove ball bearings reduce friction between moving parts by rolling rather than sliding. This rolling action, facilitated by the steel balls between the raceways, allows for smooth and quiet rotation even at high speeds.

2. Precise Alignment and Stability

Deep groove ball bearings maintain consistent alignment of the rotating components. Any misalignment can result in skewed banknotes, misreads, or jams. The tight manufacturing tolerances of these bearings ensure the precision required for accurate banknote handling.

3. Load Distribution

Although banknote counters deal with relatively low mechanical loads compared to industrial machines, the combination of rapid starts, stops, and changes in direction places dynamic forces on the components. Deep groove ball bearings handle both radial loads (from the rotation of shafts) and light axial loads (from belt tension or end thrust), making them ideal for these dynamic but moderate-load environments.

4. Low Noise and Vibration

Quiet operation is important in offices, banks, and retail spaces. The smooth rotation of deep groove ball bearings, especially those with high-precision ratings and quality lubrication, helps ensure low vibration and noise—an essential feature in customer-facing environments.

5. Durability Under Continuous Use

Banknote counters often operate for long hours, especially in cash-heavy businesses. Deep groove ball bearings, especially those with seals or shields to keep out dust and paper particles, provide long service life and reduce the need for frequent maintenance.

Key Factors for Selecting Deep Groove Ball Bearings in Banknote Counting Machines

Selecting the right bearing for a banknote counting machine involves several critical considerations. Precision and reliability are paramount, but factors like size, lubrication, speed rating, and sealing also play a role.

1. Speed Rating

Banknote counting machines operate at high rotational speeds—often in the range of 6,000 to 15,000 RPM depending on the model. Therefore, the selected bearing must have a high dynamic speed rating. This ensures that the bearing won’t overheat or degrade prematurely under continuous high-speed operation.

Selection Tip: Choose bearings specifically rated for high-speed applications, with minimal internal clearance and excellent heat resistance.

2. Noise and Vibration Control

To maintain user comfort and precise performance, the bearings must be designed for quiet and vibration-free operation. This typically involves selecting high-precision bearings with low noise class ratings (e.g., Z1, Z2, or Z3 as per Chinese standards, or ABEC-5 and above in Western equivalents).

Selection Tip: Use low-noise precision bearings with superior roundness and surface finish on the balls and raceways.

3. Load Capacity

Though not exposed to heavy loads, banknote counters require bearings that can withstand constant low to moderate dynamic loads due to fast rotation and belt tension. Deep groove ball bearings are well-suited for these conditions.

Selection Tip: Choose a bearing with a load rating appropriate to the weight of rotating components and belt tension, typically in the 6000 or 6200 series.

4. Dust and Particle Resistance

Banknote counters produce fine dust and fibers from continuous handling of paper currency. These particles can degrade bearing performance over time. Bearings with rubber seals (RS/2RS) or metal shields (ZZ) help prevent contamination.

Selection Tip: In high-dust environments, opt for 2RS (double rubber seal) bearings. For slightly cleaner environments with higher speed requirements, ZZ (metal shielded) bearings offer a good balance.

5. Lubrication

Proper lubrication is essential for minimizing friction and heat generation. Since manual re-lubrication is impractical in small machines, most banknote counting applications use pre-lubricated, sealed bearings.

Selection Tip: Select bearings pre-filled with low-viscosity, high-speed grease suitable for small electric motors or office equipment.

6. Bearing Size and Mounting

Bearings must be compact and easy to install into small machines. Typical sizes range from 3mm to 20mm bore diameter, depending on the specific shaft or roller size.

Selection Tip: Work closely with the machine designer to choose the appropriate inner/outer diameter and width to match the shaft and housing dimensions precisely.

Common Bearing Models Used in Banknote Counters

Some commonly used deep groove ball bearing series in banknote counters include:

6000 Series: Suitable for applications requiring compact size and light load capacity.

6200 Series: Slightly heavier-duty than the 6000 series; supports higher loads with minimal size increase.

Miniature Bearings (600, 608, 627, etc.): Ideal for very small rotating parts with extremely low torque requirements.

Bearings from reputable manufacturers like SKF, NSK, NTN, and Chinese brands such as HRB or ZWZ are commonly used in commercial counting machines.

Conclusion

Deep groove ball bearings are the unsung heroes of banknote counting machines. Their ability to operate at high speeds with minimal noise and vibration, combined with their compact size and low maintenance requirements, makes them ideal for this application. Choosing the right bearing involves balancing speed, load, noise, sealing, and lubrication characteristics—ensuring the machine operates efficiently and accurately day in and day out.

By understanding both the working principle and the selection criteria of deep groove ball bearings in the context of banknote counters, engineers and manufacturers can significantly enhance machine reliability, reduce maintenance needs, and deliver a better user experience in environments where precision truly counts.
